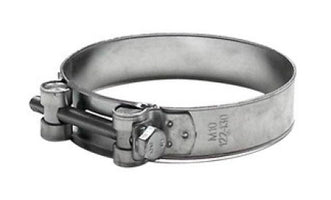

M10-162 by Midland | Buchanan M10 Maxi Clamp Heavy | 162-174mm Size | 1.02" Width | OD Range: 6.38" to 6.88" | 301 Stainless Steel Band

Save $0.64

$5.79

$5.79 - $5.79

$5.79

$5.15

$5.15 - $5.15

$5.15

Midland Industries
Buchanan M10 Maxi Clamp Heavy - 301 Stainless Steel Band

Quantity

Specifications for Variant SKU: M10-162 Midland
Material(s):	301 Stainless Steel

Features:
301 Stainless Steel Band/Bridge/Trunnion/Sleeve 10mm A2-70 Stainless steel bolt 1.7mm thick x 26mm wide band Import

Part Number	Hose OD Size mm	Hose OD Decimal:		Width
Part Number	Hose OD Size mm	Min.	Max.	Width
M10-131	131-139mm	5.16"	5.50"	1.02"
M10-140	140-148mm	5.51"	5.86"	1.02"
M10-149	149-161mm	5.87"	6.37"	1.02"
M10-162	162-174mm	6.38"	6.88"	1.02"
M10-175	175-187mm	6.89"	7.39"	1.02"
M10-188	188-200mm	7.40"	7.86"	1.02"
M10-201	201-213mm	7.91"	8.42"	1.02"
M10-214	214-226mm	8.43"	8.90"	1.02"
M10-227	227-239mm	8.94"	9.44"	1.02"
M10-240	240-252mm	9.45"	9.92"	1.02"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
