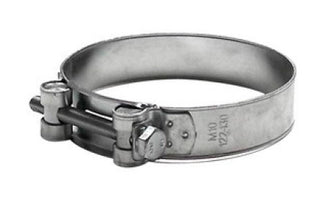

M10-227 by Midland | Buchanan M10 Maxi Clamp Heavy | 227-239mm Size | 1.02" Width | OD Range: 8.94" to 9.44" | 301 Stainless Steel Band

M10-227 by Midland | Buchanan M10 Maxi Clamp Heavy | 227-239mm Size | 1.02" Width | OD Range: 8.94" to 9.44" | 301 Stainless Steel Band

Save $2.22 Save $2.22
$19.95
$19.95 - $19.95
$19.95
$17.73
$17.73 - $17.73
$17.73

Midland Industries
Buchanan M10 Maxi Clamp Heavy - 301 Stainless Steel Band

Inventory @ Manufacturers Warehouse: 15 Units
Specifications for Variant SKU: M10-227 Midland
Material(s): 301 Stainless Steel
Features:
  • 301 Stainless Steel Band/Bridge/Trunnion/Sleeve
  • 10mm A2-70 Stainless steel bolt
  • 1.7mm thick x 26mm wide band
  • Import
Part Number Hose OD Size
mm		 Hose OD Decimal: Width
Min. Max.
M10-131 131-139mm 5.16" 5.50" 1.02"
M10-140 140-148mm 5.51" 5.86" 1.02"
M10-149 149-161mm 5.87" 6.37" 1.02"
M10-162 162-174mm 6.38" 6.88" 1.02"
M10-175 175-187mm 6.89" 7.39" 1.02"
M10-188 188-200mm 7.40" 7.86" 1.02"
M10-201 201-213mm 7.91" 8.42" 1.02"
M10-214 214-226mm 8.43" 8.90" 1.02"
M10-227 227-239mm 8.94" 9.44" 1.02"
M10-240 240-252mm 9.45" 9.92" 1.02"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
