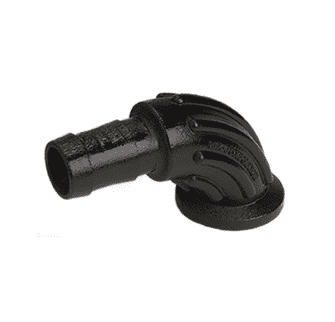

M100BRBSWP90 Banjo Sweep - 1" Flange x Hose Shank Sweep

M100BRBSWP90 by Banjo | Manifold Flange Connections for Sweeps | 1" Flange x Hose Shank Sweep | 300 PSI | Pack of 10

Save $12.15 Save $12.15
$109.35
$109.35 - $109.35
$109.35
$97.20
$97.20 - $97.20
$97.20
Banjo Manifold Flange Connections - Sweeps

Package Quantity: 10 EA

Specifications for Variant SKU: M100BRBSWP90 Banjo | 10 |
Shape (Orientation): 90 Degree
Ends Configuration: 1in Full Port Manifold Flange, 1in Hose Barb
Material(s): Polypropylene

Applications:
  • Fluids
  • Direct replacement for standard 90° flanged couplings.
Features:
  • Positive seals.
  • Quick & easy assembly.
  • Easy On/Off hose connections
  • 360° Orientation.
  • Improved Flow for Max GPM.

Part Number End Type Max PSI
Sweeps
M100125BRBSWP90 1" Flange x 1-1/4" Hose Shank Sweep 300 PSI
M100BRBSWP90 1" Flange x Hose Shank Sweep 300 PSI
M100SWP90 1" Flange x Flange Sweep 300 PSI
M200SWP90 2" Flange x Flange Sweep 300 PSI
M220200SWP90 2" Full Port Flange x 2" Flange Sweep 300 PSI
M220ASWP90 2" Full Port Flange x Male Adapter Sweep 200 PSI
M220BRBSWP90 2" Full Port Flange x Hose Shank Sweep 300 PSI
M220MPTSWP90 2" Full Port Flange x Male NPT Thread Sweep 300 PSI
M220SWP90 2" Full Port Flange x Flange Sweep 300 PSI
M300220SWP90* 3" Flange x 2" Flange Sweep - 90° 300 PSI
M300ASWP90 3" Flange x Male Adapter Sweep 100 PSI
M300BRBSWP90 3" Flange x Hose Shank Sweep 225 PSI
M300MPTSWP90 3" Flange x Male NPT Thread Sweep 200 PSI
M300SWP90 3" Flange x Flange Sweep 200 PSI
Sweeps with Gauge Ports
M100BRBSWPG90 1" Full Port Flange x 1" Hose Shank Sweep with 1/4" gauge port 300 PSI
M100SWPG90 1" Flange x Flange Sweep with 1/4" gauge port 300 PSI
M220SWP038G90 2" Full Port 90° Manifold Sweep with 3/8" NPT Port 300 PSI
M220SWPG90* 2" Full Port 90° Flange x Flange Sweep with 1/4" Port 300 PSI
M300SWPG90 3" Flange x Flange Sweep with 1/4" gauge port 200 PSI
M300SWP050G90 90° 3" Flange x Flange Sweep with 1/2" Port N/A
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
