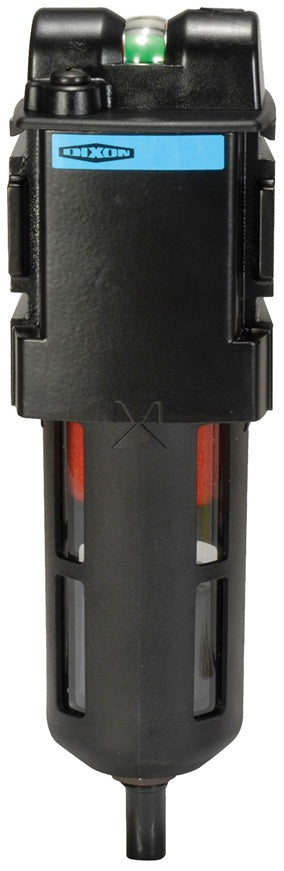

M18-04M Wilkerson by Dixon Valve | M18-Series | Compact Coalescing Filter | 1/2" Size | 36 SCFM | Manual Drain | 1.72 oz. Compact Transparent Bowl & Guard

M18-04M Wilkerson by Dixon Valve | M18-Series | Compact Coalescing Filter | 1/2" Size | 36 SCFM | Manual Drain | 1.72 oz. Compact Transparent Bowl & Guard

Save $99.11 Save $99.11
$247.78
$247.78 - $247.78
$247.78
$148.67
$148.67 - $148.67
$148.67

Dixon Valve
Wilkerson | M18-Series | Compact Coalescing Filter

For air service only.

High-efficiency removal of water, oil aerosols, and solid particulate contaminants down to 0.01 mg/m3 with minimum pressure drop.

1.72 oz. bowl
Specifications for Variant SKU: M18-04M Dixon
Brand: Wilkerson
Series: M18-Series
Features:
  • Modern design and appearance.
  • Light weight.
  • High flow capacity.
  • 1.72 oz. bowl.
  • The differential pressure indicator changes from green to red with pressure loss.
Specifications:
  • Maximum operating conditions: 150 PSIG (10.3 bar) and -13°F to 125°F (-25°C to 52°C)
  • SCFM ratings at 150 PSIG inlet pressure.
  • A standard airline filter should be installed as a pre-filter when using a coalescing filter.
Dimensions:
With Compact Transparent Bowl and Guard Size Flow (SCFM)
Part Number
Automatic Drain		 Part Number
Manual Drain
M18-02A M18-02M 1/4" 36 SCFM
M18-03A M18-03M 3/8" 36 SCFM
M18-04A M18-04M 1/2" 36 SCFM
