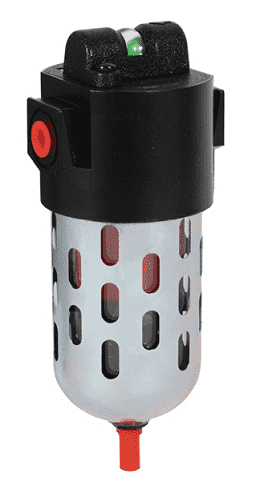

M26-02A Dixon Wilkerson 1/4" Modular Coalescing Filter with Standard Transparent Bowl and Guard - Automatic Drain - 55.0 SCFM

M26-02A Dixon Valve Wilkerson 1/4" Modular Coalescing Filter with Standard Transparent Bowl and Guard - Automatic Drain - 55.0 SCFM

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Wilkerson Modular Coalescing Filters On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.
Specifications for Variant SKU: M26-02A Dixon
Features:
  • For removal of extremely fine oil mists, oil aerosols and microscopic particles.
  • A standard airline filter should be installed as a pre-filter when using a coalescing filter.
  • 0.5 micron type B and 0.003 micron type D elements are optional.
  • Differential pressure indicator changes from green to red with pressure loss.
  • 0.01 micron type C element.
  • 10 oz. bowl.
  • Can be installed in modular system.
Part Number Size SCFM Drain Type PSI Min/Max Temp Weight (Lbs.)
With Compact Transparent Bowl and Guard
M26-02A 1/4" 55.0 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.6250
M26-03A 3/8" 65.5 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.5850
M26-04A 1/2" 79.5 Automatic Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.5500
M26-02M 1/4" 55.0 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.3100
M26-03M 3/8" 65.5 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.5310
M26-04M 1/2" 79.5 Manual Drain 150 (10.20 bar) 32 deg. F/ 125 deg. F (0.00 deg. C / 51.67 deg. C) 2.5200
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
