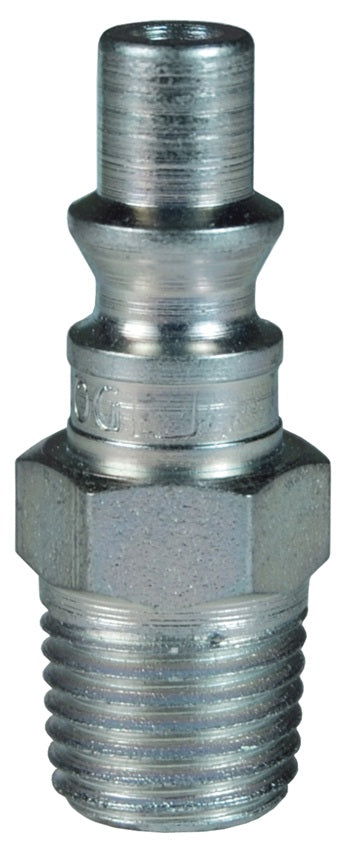

M2M1 by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | 1/8" Male NPT x 1/4" ARO Interchange | Plug | Steel

M2M1 by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | 1/8" Male NPT x 1/4" ARO Interchange | Plug | Steel

Save $0.26 Save $0.26
$2.31
$2.31 - $2.31
$2.31
$2.05
$2.05 - $2.05
$2.05

Dixon Valve & Coupling
Pneumatic Coupling: M-Series ARO Interchange Plug (Male Threads)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: M2M1 Dixon
Series: M-Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male ARO 210 QD Interchange, 1/8in Male NPTF
Material(s): Steel
Compatibility & Interchange:
  • Automatic couplings interchange with ARO 210/310 and Hansen 210/310.
  • Manual Couplings Interchange with Parker 50-Series and Amflo Type 'B'.
Construction:
  • Machined components are manufactured using solid bar stock.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:

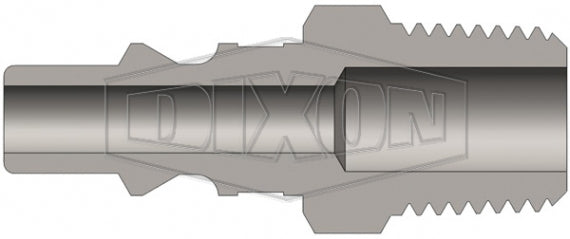

M-Series | ARO Interchange Plug (Male Threads)
Part Number Coupling Type Body Size Threads Material Length Maximum OD Hex Working Pressure / Burst Pressure
when Connected to:
M2M1 Plug/Male 1/4" 1/8" - 27 Male NPTF Steel 1.48"
(37.6mm)		 0.58"
(14.7mm)		 1/2"
  • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
  • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
    M2M2 Plug/Male 1/4" 1/4" - 18 Male NPTF Steel 1.60"
    (40.6mm)    		 0.65"
    (16.5mm)    		 9/16"
    • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
    • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
      M2M2-B Plug/Male 1/4" 1/4" - 18 Male NPTF Brass 1.60"
      (40.6mm)      		 0.65"
      (16.5mm)      		 9/16"
      • Auto Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 5,000 PSI (345 bar)
      • Manual Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,700 PSI (876 bar)
        M2M3 Plug/Male 1/4" 3/8" - 18 Male NPTF Steel 1.80"
        (45.7mm)        		 0.79"
        (20.1mm)        		 3/4"
        • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 2,600 PSI (179 bar)
        • Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 12,400 PSI (855 bar)
          M3M3 Plug/Male 3/8" 3/8" - 18 Male NPTF Steel 1.91"
          (48.5mm)          		 0.79"
          (20.1mm)          		 3/4"
          • Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) | Burst: 3,300 PSI (228 bar)
