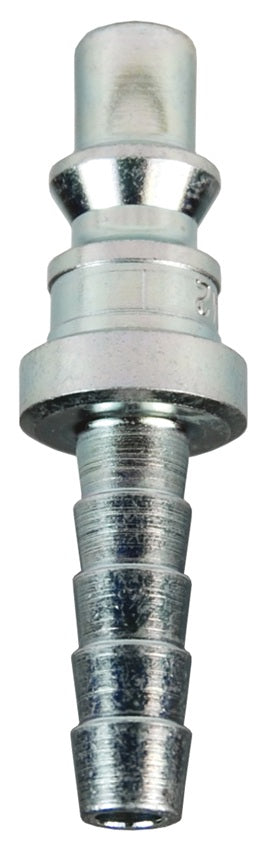

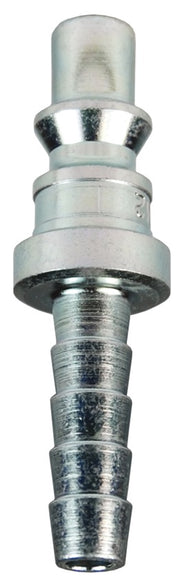

M2S2 by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | Hose Barb | 1/4" Hose ID x 1/4" ARO Interchange | Plug | Steel

Save $0.03

$3.20

$3.20 - $3.20

$3.20

$3.17

$3.17 - $3.17

$3.17

Dixon Valve & Coupling
Pneumatic Coupling: M-Series ARO Interchange Plug (Standard Hose Barb)

Quantity

Specifications for Variant SKU: M2S2 Dixon
Series:	M-Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male ARO 210 QD Interchange, 1/4in Hose Barb
Material(s):	Steel

Compatibility & Interchange:	Automatic couplings interchange with ARO 210/310 and Hansen 210/310 Manual Couplings Interchange with Parker 50-Series and Amflo Type 'B'
Construction:	Machined components are manufactured using solid bar stock. Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:	Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application. Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death. It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

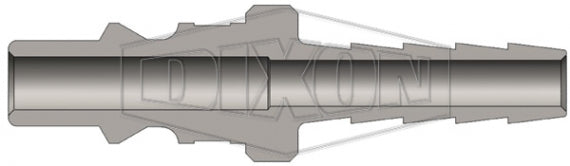

M-Series \| ARO Interchange Plug (Standard Hose Barb)

Part Number	Coupling Type	Body Size	Hose ID	Material	Length	Maximum OD	Hex	Working Pressure / Burst Pressure when Connected to:
M2S2	Plug/Male	1/4"	1/4"	Steel	2.00" (50.8mm)	0.56" (14.2mm)	-	Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 2,600 PSI (179 bar) Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 12,400 PSI (855 bar)
M2S3	Plug/Male	1/4"	3/8"	Steel	2.00" (50.8mm)	0.56" (14.2mm)	-	Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 2,600 PSI (179 bar) Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 12,400 PSI (855 bar)
M3S3	Plug/Male	3/8"	3/8"	Steel	2.25" (57.2mm)	0.88" (22.4mm)	-	Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 3,300 PSI (228 bar)
