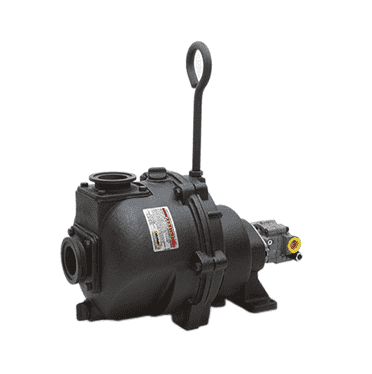

M332PIHYW Banjo 3" M332 Series Manifold Cast Iron Wet Seal Pump with 21 HP Hydraulic Motor

M332PIHYW by Banjo | Centrifugal Pumps | 3" Manifold Cast Iron Wet Seal Pump with 21 HP Hydraulic Motor (M332 Series)

Save $275.75 Save $275.75
$2,481.75
$2,481.75 - $2,481.75
$2,481.75
$2,206.00
$2,206.00 - $2,206.00
$2,206.00

Banjo Self-Priming Centrifugal Pumps - 3" M332 Series Cast Iron Manifold Wet Seal Pumps with Hydraulic Motors & Replacement Parts
Specifications for Variant SKU: M332PIHYW Banjo
Series: M332 Series

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: N/A
Replacement Parts: Replacement Parts for 3" M332 Series Cast Iron Manifold Wet Seal Pumps with Hydraulic Motors
Hydraulic Motor Data:
U.S. Gallons/Rev. 0.0038 Cubic Inches/Rev. 0.878
Liters/Rev. 0.0144 Max Hydraulic Pressure 3000 PSI
Min Hydraulic Pressure 600 PSI Inlet Port 1-1/16-12UN-2B
Outlet Port 1-5/16-12UN-2B Minimum GPM Required 9 GPM 2370 RPM
Maximum GPM Required 13 GPM 3450 RPM Ideal GPM Required 9 GPM 3600 RPM
Connection Information
Inlet "A" Port Outlet "B" Port
Supplied check valve is to ensure proper rotation of the Banjo pump. Place check valve in outlet port (marked "B") for proper right hand rotation. It is recommended that a minimum 3/4" inlet line & a minimum 1" outlet line be used. The outlet port must be connected directly back to the hydraulic fluid reservoir & not to any valving, regulators or flow diverters. The outlet port/return line back pressure must not exceed 250 PSI.
Spool Valve Information
Required Outlet Flow Min 9 GPM / Max 13 GPM Required System Pressure Min 600 PSI / Max 3000 PSI
Pump Features:
  • Durable cast iron construction
  • Dynamically balanced impeller
  • Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber
  • Pump end separated from engine
  • Large weep holes between pump end and motor
  • "V" Shaped for quicker priming
Notes:
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • Recommendation: Banjo recommends using the motor spool control valve or a suitable equivalent. The lack of such a valve in this circuit may cause failure to the hydraulic motor.
Part Number Description Horsepower
3" M332 Series Cast Iron Manifold Wet Seal Pumps with Hydraulic Motors
M332PIHYW 3" Manifold Cast Iron Wet Seal Pump with 21 HP Hydraulic Motor 21 HP (Made to Order)
Hydraulic Motor Spool Valve
HSV1000 Hydraulic Motor Spool Valve N/A ---
Replacement Parts for 3" Cast Iron Hydraulic Pumps
Item Part Number Description Quantity Required
1 13719 O-Ring 1
2 15035E EPDM Mechanical Seal Assembly 1
3 12901 SS Rear Bracket Washer 4
4 12717 O-Ring for Screw Head 4
5 12709 O-Ring 4
6 13055 Adapter Shaft 1
7 19702 Volute 1
8 19772 5 Vane Impeller 1
9 12705 Check Valve 1
10 12719A Body O-Ring 1
11 12902A Impeller Key 1
12 16901 1/4" SQ. 3/4" Key Stock 1
13 V10118 5/16" SS Lock Washer 9
14 CV10175 Gasket 2
15 12777 1/2" Plug 2
16 UV15163 Prime/Drain Plug O-Ring 2
17 19703W Rear Bracket 1
18 19201W Wet Seal Reservoir 1
19 12715A SS Bracket Screws 9
20 18034 5/8" SS Jam Nut 1
21 18033 Handle 1
22 M19712X Pump Body 1
23 13777 3/4" Plug 2
24 13778 O-Ring 2
25 19001H Reservoir Backing Plate 1
26 HY1012 Tyrone® UM16 Hydraulic Motor 1
27 18502 SKF 63306-2RS1/C3 Bearing 1
28 18055H Hydraulic Motor Adapter Shaft 1
29 19766 3/8" Flat Washer 1
30 A203V O-Ring 1
32 17449 Bolt 2
33 18058 1/2" Split Lock Washer 2
