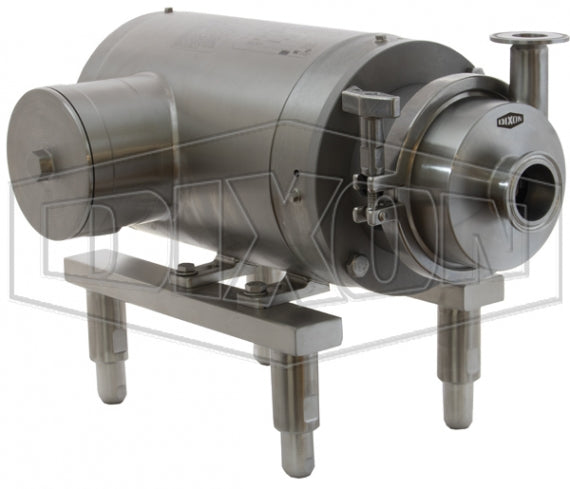

MB15A01C1VA4B02 Dixon Valve MB100 Series Sanitary Centrifugal Pump - 1-1/2" Inlet x 1" Outlet - FKM Elastomer - Sterling White Epoxy Painted Washdown Motor - 3PH/60Hz 208-230/460V - 1.0HP

MB15A01C1VA4B02 Dixon Valve MB100 Series Sanitary Centrifugal Pump - 1-1/2" Inlet x 1" Outlet - FKM Elastomer - Sterling White Epoxy Painted Washdown Motor - 3PH/60Hz 208-230/460V - 1.0HP

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings
MB100 Series Sanitary Centrifugal Pump
Motor Pump Units Single Phase Power

Used for food processing, dairy, beverage, winery and brewery markets.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: MB15A01C1VA4B02 Dixon
Features:
  • Standard Clamp - Uses a standard 4" tube clamp for easy removal and adjustment of the casing. Eliminates post and tab construction.
  • Seal Design - Robust single mechanical seal design with silicon carbide stationary seal-face and carbon rotary seal-face.
  • Seal Performance - Efficient seal path promotes seal cooling and provides less restrictions to adequately clean the seal.
  • Impeller & Shaft Design - Sealed impeller provides optimal hygienic performance while the split shaft compression collar improves shaft concentricity, reduces vibration, and improves seal life.
  • Drop-in replacement for other C-100 series pumps.
  • Wet end mounts to a standard 56C frame motor.
Construction:
  • All product contact steel surfaces: 316L Stainless Steel
  • All non-product contact steel surfaces: 304 Stainless Steel
Specifications:
  • Maximum capacity: 75 GPM
  • Maximum temperature: 212°F (100°C)
  • Surface ID finish: <32Ra (ID mech. polish)
  • Connections: clamp
  • Elastomers: FDA 21CFR 177.2600 and 3A 18-03 Class I
  • Weight: 9 lbs without motor
  • Frame size: NEMA 56C
Note:
  • Please reference the pump curve to determine if your duty point falls within the specification you have selected.
    Pump Curve PDF
Manuals:
Part Number Connection
Type		 Motor
Electrical		 Motor
Enclosure		 Elastomer Max. Impeller
Diameter		 Seal Inlet Outlet RPM Horsepower
MB15A01C1VA1A01 Clamp 1PH/60Hz/115/230V Baldor SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 0.75HP
MB15A01C1VA1A02 Clamp 1PH/60Hz/115/230V Baldor SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1VA1A04 Clamp 1PH/60Hz/115/230V Baldor SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1VA1B01 Clamp 3PH/60Hz/208-230/460V Baldor SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 0.75HP
MB15A01C1VA1B02 Clamp 3PH/60Hz/208-230/460V Baldor SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1VA1B03 Clamp 3PH/60Hz/208-230/460V Baldor SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.5HP
MB15A01C1VA1B04 Clamp 3PH/60Hz/208-230/460V Baldor SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1VA2A04 Clamp 1PH/60Hz/115/230V Sterling SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1VA2B01 Clamp 3PH/60Hz/208-230/460V Sterling SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 0.75HP
MB15A01C1VA2B02 Clamp 3PH/60Hz/208-230/460V Sterling SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1VA2B03 Clamp 3PH/60Hz/208-230/460V Sterling SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.5HP
MB15A01C1VA2B04 Clamp 3PH/60Hz/208-230/460V Sterling SS Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1VA3A02 Clamp 1PH/60Hz/115/230V Baldor White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1VA3A03 Clamp 1PH/60Hz/115/230V Baldor White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.5HP
MB15A01C1VA3A04 Clamp 1PH/60Hz/115/230V Baldor White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1VA3B01 Clamp 3PH/60Hz/208-230/460V Baldor White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 0.75HP
MB15A01C1VA3B02 Clamp 3PH/60Hz/208-230/460V Baldor White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1VA3B03 Clamp 3PH/60Hz/208-230/460V Baldor White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.5HP
MB15A01C1VA3B04 Clamp 3PH/60Hz/208-230/460V Baldor White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1VA4A04 Clamp 1PH/60Hz/115/230V Sterling White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A01C1VA4B01 Clamp 3PH/60Hz/208-230/460V Sterling White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 0.75HP
MB15A01C1VA4B02 Clamp 3PH/60Hz/208-230/460V Sterling White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.0HP
MB15A01C1VA4B03 Clamp 3PH/60Hz/208-230/460V Sterling White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 3500 RPM 1.5HP
MB15A01C1VA4B04 Clamp 3PH/60Hz/208-230/460V Sterling White Epoxy Painted Washdown FKM 3.86" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
MB15A04C1VA1B04 Clamp 3PH/60Hz 208-230/460V Baldor SS Washdown FKM 3.0" Silicon Carbide vs. Carbon 1-1/2" 1" 1750 RPM 0.5HP
