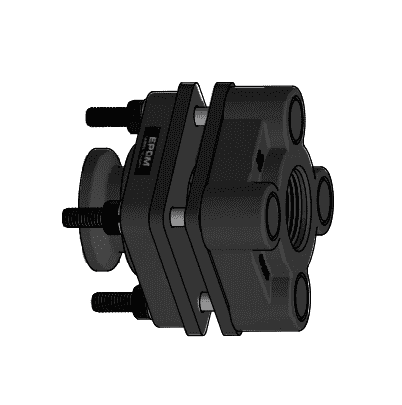

MBF103 Banjo 1" Manifold Bolted Flange With 3" Bolts

MBF103 by Banjo | Manifold Flange Connections | 1" Manifold Bolted Flange with 3" Bolts | Stainless Steel Bolts | Gasket: EPDM

Save $30.13 Save $30.13
$75.33
$75.33 - $75.33
$75.33
$45.20
$45.20 - $45.20
$45.20

Banjo Manifold Flange Connections
Manifold Bolted Tank Flanges

Specifications for Variant SKU: MBF103 Banjo
Shape (Orientation): Straight
Ends Configuration: 1in Full Port Manifold Flange, 1in Female NPT
Material(s): Polypropylene
Seal Material(s): EPDM
Applications:
  • Fluids
Features:
  • Stainless steel bolts
  • Bolt head plugs sealed ultrasonically
  • Glass reinforced polypropylene
    • EPDM Standard but available in FKM
Part Number End Type Max PSI Gasket
MBF100 1" Flange x 1" EPDM Female Thread 150 PSI EPDM
MBF103 1" Manifold Bolted Flange With 3" Bolts N/A EPDM
MBF105 1" Bolted Manifold Tank Flange 2-3/4" Bolted N/A EPDM
MBF200 2" Flange x 2" EPDM Female Thread 150 PSI EPDM
MBF220 2" Full Port Flange x 2" EPDM Female Thread 150 PSI EPDM
MBF223 2" Full Port Manifold Bolt Tank Flange 3" Bolts N/A EPDM
MBF235 2" Manifold Tank Flange 3-1/2" Bolt N/A EPDM
MBF300 3" Flange x 3" EPDM Female Thread N/A EPDM
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
