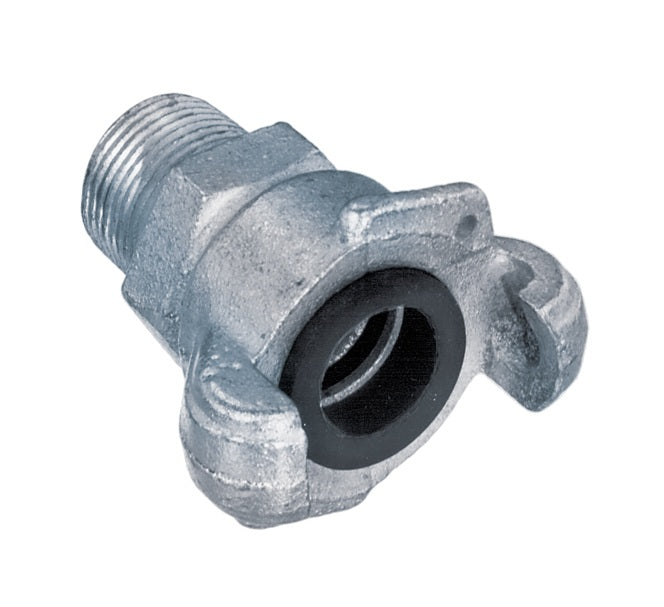

ME-75 by Kuriyama | ME Series | Male Threaded Universal Air Hose Coupling | 2 Lug | 3/4" Male NPT | Zinc Plated Carbon Steel

Save $5.84

$11.08

$11.08 - $11.08

$11.08

$5.24

$5.24 - $5.24

$5.24

Kuriyama of America Inc.
ME Series | Male Threaded Universal Air Hose Coupling | Zinc Plated Carbon Steel

Applications include compressed air systems and pneumatic tools.

Designed for compressed air and water service only.

Specifications for Variant SKU: ME-75 Kuriyama
Series:	ME Series
Shape (Orientation):	Straight
Ends Configuration:	2-Lug Chicago, 3/4in Male NPT
Material(s):	Zinc Plated Carbon Steel
Seal Material(s):	Rubber
Applicable Specs & Approvals:	MIL-Spec A-A-59553, ASTM A 27 Grade 1030

What are the Applications?

Applications include compressed air systems and pneumatic tools.
Designed for compressed air and water service only.
WARNING: Not for use in steam applications!

What are the Materials?

ASTM A27, Grade 1030 Zinc Plated Carbon Steel.
Complies with Mil-Spec A-A-59553.

Part Number	Male Thread Size (in)	Style	Gasket	PSI Rating at 70°F	Weight Each (lbs)
ME-25	1/4"	2 Lug	AHG-75	150 PSI	0.36 lbs
ME-38	3/8"	2 Lug	AHG-75	150 PSI	0.40 lbs
ME-50	1/2"	2 Lug	AHG-75	150 PSI	0.44 lbs
ME-75	3/4"	2 Lug	AHG-75	150 PSI	0.48 lbs
ME-100	1"	2 Lug	AHG-75	150 PSI	0.60 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
