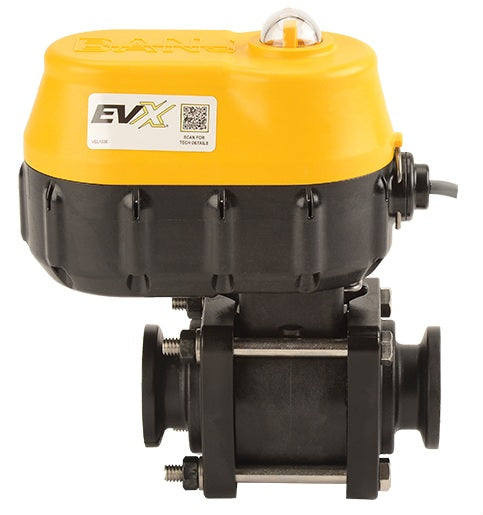

MEVX101 by Banjo | Manifold Flange Connection | MEVX On/Off Bolted Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

Save $137.21

$480.24

$480.24 - $480.24

$480.24

$343.03

$343.03 - $343.03

$343.03

Banjo® Liquid Handling Products
Manifold Flange Connection | MEVX ON/OFF Bolted Electric Valve | Full Port

Specifications for Variant SKU: MEVX101 Banjo
Series:	MEVX Series
Shape (Orientation):	Straight
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated. 24-volt available. Open/closed indicator. ON/OFF has 3/4 second response. Regulating has 4 second response. Open / Close verification available. IP68 waterproof. -0 to 150F (-18 to 65C) operating. -67 to 221F (-55 to 105C) storage. On/Off Actuator rated to 500,000 cycles. Regulating Actuator rated to 250,000 cycles. Valve rated to 50,000 cycles leak-free. Bolted valves have the same exact dimensions as our legacy EV valves. Additional protocols available including CAN/ISO BUS.
Materials:
316 stainless steel ball & stem Poly ball available on bolted valves Stainless steel hardware Fiberglass reinforced polypropylene PTFE seats FKM stem seals
On/Off:
Red = +12V DC Black = Ground White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
Red = +12V DC (Open) White = Ground (Open) Black = +12V DC (Close) Green = Ground (Close)

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball	Optional Handle Kit	Rapair Kit
MEVX101	1" Full Port Electric Valve	300	1"	1"	VP20153SH	EVX10200
