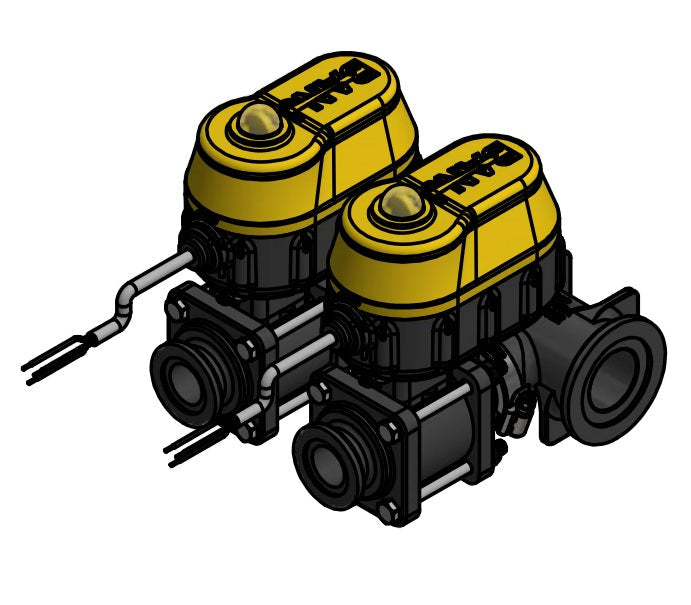

MEVX1012 by Banjo | Manifold Flange Connection | MEVX On/Off Bolted 2 Bank Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

Save $285.81

$1,000.34

$1,000.34 - $1,000.34

$1,000.34

$714.53

$714.53 - $714.53

$714.53

Banjo® Liquid Handling Products
Manifold Flange Connection | MEVX On/Off Bolted 2 Bank Electric Valve | Full Port

Specifications for Variant SKU: MEVX1012 Banjo
Series:	MEVX Series
Shape (Orientation):	Straight
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated. 24-volt available. Open/closed indicator. 3 wires on/off. 0.75 second response time. 2-bank of 1" full port manifold valve connections. M200100TEE manifold tee. Bolted valve style. IP68 waterproof. -0 to 150F (-18 to 65C) operating. -67 to 221F (-55 to 105C) storage. Actuator rated to 500,000 cycles. Valve rated to 50,000 cycles leak-free.
Materials:
Stainless steel ball & stem Poly ball available (with bolted valves only) Stainless steel hardware Fiberglass reinforced polypropylene PTFE seats FKM stem seals

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball
MEVX1012	1" Full Port 2 Bank Electric Valve	300 PSI	1"	1"
MEVX1013	1" Full Port 3 Bank Electric Valve	300 PSI	1"	1"
MEVX1014	1" Full Port 4 Bank Electric Valve	300 PSI	1"	1"
MEVX2013	2" Standard Port Electric Valve	300 PSI	2"	2"
