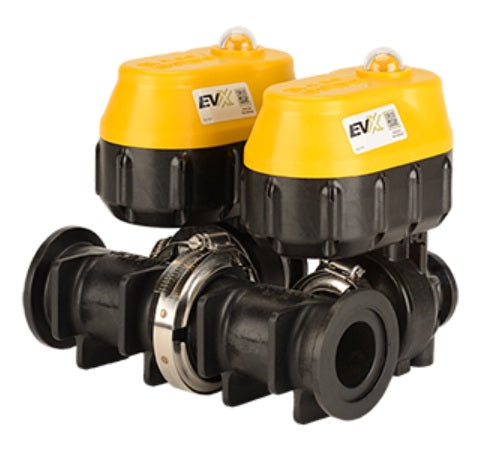

MEVX102 by Banjo | Manifold Flange Connection | MEVX On/Off Welded 2 Bank Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

Save $295.47

$1,034.14

$1,034.14 - $1,034.14

$1,034.14

$738.67

$738.67 - $738.67

$738.67

Banjo® Liquid Handling Products
Manifold Flange Connection | MEVX On/Off Welded 2 Bank Electric Valve | Full Port

Specifications for Variant SKU: MEVX102 Banjo
Series:	MEVX Series
Shape (Orientation):	Straight
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated. Open/closed indicator. ON/OFF has 3/4 second response. Open / Close verification available. IP68 waterproof. -0 to 150F (-18 to 65C) operating. -67 to 221F (-55 to 105C) storage. Actuator rated to 500,000 cycles. Valve rated to 50,000 cycles leak-free. Additional options available including PWM to CAN/ISO BUS to Bluetooth®* wireless technology.
Materials:
316 stainless steel ball & stem Poly ball available Stainless steel hardware Fiberglass reinforced polypropylene Zinc alloy lower actuator housing PTFE seats FKM stem seals
On/Off:
Red = +12V DC Black = Ground White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
Red = +12V DC (Open) White = Ground (Open) Black = +12V DC (Close) Green = Ground (Close)

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball
MEVX102	1" Full Port 2 Bank Electric Valve	300 PSI	1"	1"
MEVX103	1" Full Port 3 Bank Electric Valve	300 PSI	1"	1"

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
