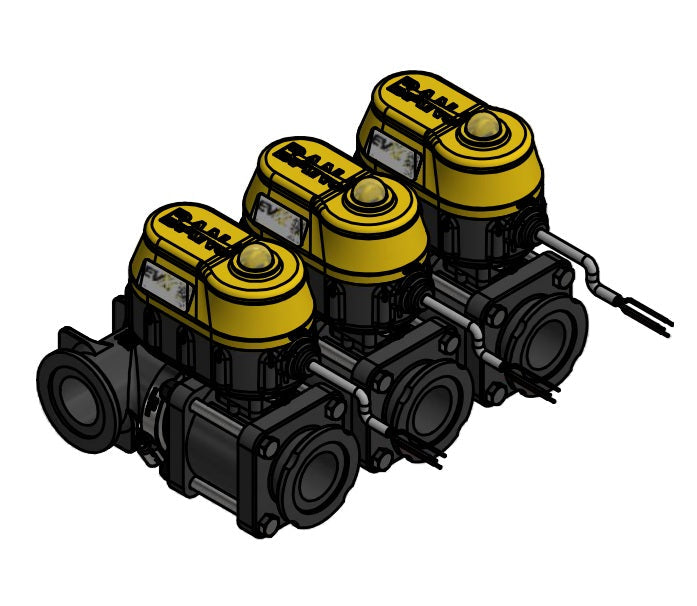

MEVX2013 by Banjo | Manifold Flange Connection | MEVX On/Off Bolted 3 Bank Electric Valve | Standard Port | 2" Pipe Size | 2" Opening Thru Ball | FKM Seals | Polypropylene

Save $605.40

$2,118.89

$2,118.89 - $2,118.89

$2,118.89

$1,513.49

$1,513.49 - $1,513.49

$1,513.49

Banjo® Liquid Handling Products
Manifold Flange Connection | MEVX On/Off Bolted 3 Bank Electric Valve | Standard Port

Specifications for Variant SKU: MEVX2013 Banjo
Series:	MEVX Series
Shape (Orientation):	Straight
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated. Open/closed indicator. ON/OFF has ¾ second response. Open / Close verification available. IP68 waterproof. -0 to 150F (-18 to 65C) operating. -67 to 221F (-55 to 105C) storage. Actuator rated to 500,000 cycles. Valve rated to 50,000 cycles leak-free. Additional options available including PWM to CAN/ISO BUS to Bluetooth®* wireless technology.
Materials:
316 stainless steel ball & stem Poly ball available Stainless steel hardware Fiberglass reinforced polypropylene Zinc alloy lower actuator housing PTFE seats FKM stem seals

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball
MEVX1012	1" Full Port 2 Bank Electric Valve	300 PSI	1"	1"
MEVX1013	1" Full Port 3 Bank Electric Valve	300 PSI	1"	1"
MEVX1014	1" Full Port 4 Bank Electric Valve	300 PSI	1"	1"
MEVX2013	2" Standard Port Electric Valve	300 PSI	2"	2"

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
