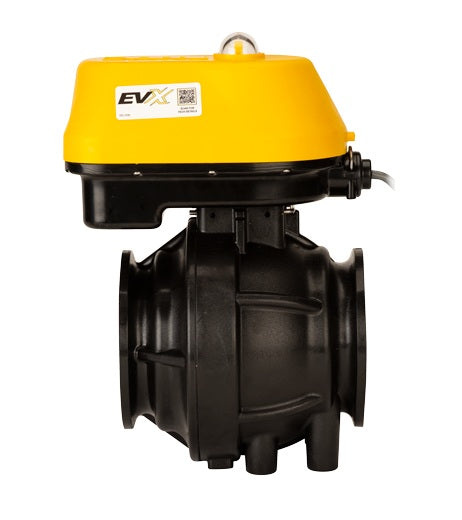

MEVXR300 by Banjo | Manifold Flange Connection | MEVX Regulating Electric Valve | Full Port | 3" Pipe Size | 3" Opening Thru Ball | FKM Seals | Polypropylene

Save $384.51

$1,345.78

$1,345.78 - $1,345.78

$1,345.78

$961.27

$961.27 - $961.27

$961.27

Banjo® Liquid Handling Products
Manifold Flange Connection | MEVX Regulating Electric Valve | Full Port

Specifications for Variant SKU: MEVXR300 Banjo
Series:	MEVX Series
Shape (Orientation):	Straight
Material(s):	Polypropylene
Seal Material(s):	Viton/FKM

Features:
12-volt DC operated. 24-volt available. Open/closed indicator. ON/OFF 3" has 4 second response. Regulating 3" has 4 second response. Open / Close verification available. IP68 waterproof. -0 to 150F (-18 to 65C) operating. -67 to 221F (-55 to 105C) storage. Actuator rated to 250,000 cycles. Valve rated to 50,000 cycles leak-free. Additional protocols available including CAN/ISO BUS.
Materials:
316 stainless steel ball & stem Stainless steel hardware Fiberglass reinforced polypropylene Zinc alloy lower actuator housing PTFE seats FKM stem seals
On/Off:
Red = +12V DC Black = Ground White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
Red = +12V DC (Open) White = Ground (Open) Black = +12V DC (Close) Green = Ground (Close)

Part Number	Description	Max PSI	Pipe Size	Opening Thru Ball
MEVXR300	3" Full Port Electric Valve	125 PSI	3"	3"
