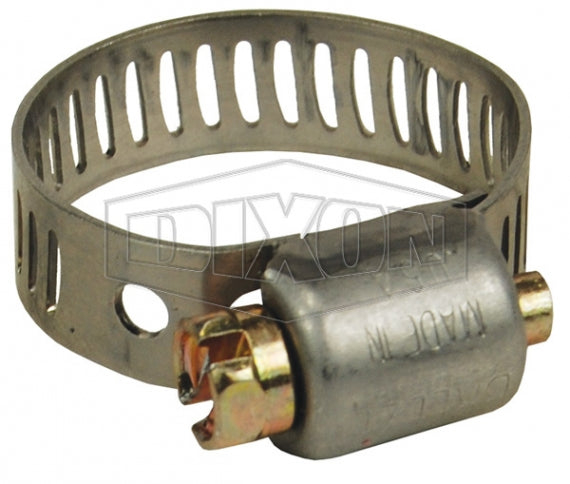

MH12 by Dixon Valve | Style MH | Miniature Worm Gear Clamp | 5/16" Band Width | Hose OD Range: from 11/16" to 1-1/4" | SAE 300 Stainless Steel Band | Zinc-Plated Steel Screw | Box of 10

Save $6.49

$16.22

$16.22 - $16.22

$16.22

$9.73

$9.73 - $9.73

$9.73

Dixon Valve
Miniature Worm Gear Clamps | Style MH

Package Quantity: 10 EA

Specifications for Variant SKU: MH12 Dixon \| 10 \|
Series:	Style MH
Material(s):	300 Stainless Steel, Zinc-Plated Steel
Special Properties:	Mini/Micro Size
Clamp Width:	0.3125
Minimum Clamp I.D.:	0.6875
Maximum Clamp I.D.:	1.25

Features:
Maximum recommended torque 15 in. lbs. Screw design: 1/4" slotted hex head.
Materials:
Style MH Band and housing: SAE 300-series stainless. Screw: SAE 1018 case-hardened, hex-free chrome zinc plated steel. Style MAH Band and housing: SAE 300-series stainless. Screw: SAE 300-series stainless.
Approval:
Meets SAE J1508.

Style MH Part Number	Style MAH Part Number	Band Width	Hose OD
Style MH Part Number	Style MAH Part Number	Band Width	From	To
MH4	MAH4	5/16"	7/32"	5/8"
MH6	MAH6	5/16"	7/16"	25/32"
MH8	MAH8	5/16"	1/2"	29/32"
MH10	MAH10	5/16"	9/16"	1-1/16"
MH12	MAH12	5/16"	11/16"	1-1/4"
MH16	MAH16	5/16"	15/16"	1-1/2"
MH20	MAH20	5/16"	1-3/16"	1-3/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
