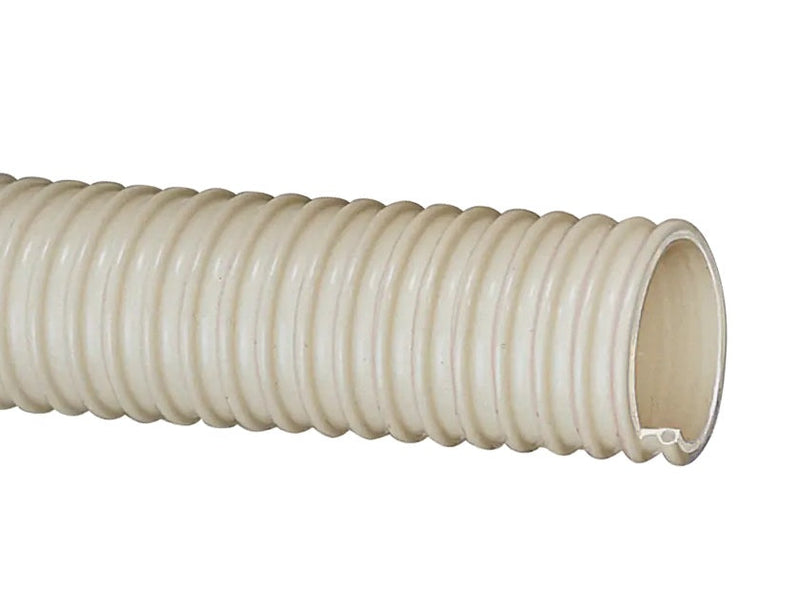

MH200X100 Tigerflex® by Kuriyama | MH™ Series | Liquid Suction "Marine Hose" | PVC | 2" ID | 2.32" OD | 100ft Length

MH200X100 Tigerflex® by Kuriyama | MH™ Series | Liquid Suction "Marine Hose" | PVC | 2" ID | 2.32" OD | 100ft Length

Save $121.45 Save $121.45
$482.65
$482.65 - $482.65
$482.65
$361.20
$361.20 - $361.20
$361.20
p>Kuriyama of America Inc.
Tigerflex® | MH™ Series | Liquid Suction "Marine Hose" | PVC

Ideal for drainage and marine plumbing applications.

Suited for drain lines, bilge discharge, and plumbing in recreational vehicles (RVs).

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: MH200X100 Kuriyama | 100 |
Brand: Tigerflex
Series: MH Series
Hose Color(s): White/Off-White
Internal Diameter: 2in
Outer Diameter: 2.32in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection
Applications: Drain lines.
Marine bilge discharge.
Marine plumbing.
Recreational vehicle (RV) plumbing.
Tube: PVC. Reinforcement: Rigid PVC helix.
Cover: - Service Temperature Range: -4ºF (-20ºC) to +150ºF (+65ºC)
(Actual service temperature range is application dependent)
Specifications: Phthalate Free (10)
RoHS (11)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Odor-resistant Tube - Special additives help eliminate the build-up of unwanted odors.
  • Convoluted Outer Cover - Provides increased hose flexibility.
  • Easy Installation - Ideal for working in confi ned areas. Permits installers to make smooth, tight turns. Requires fewer fittings than rigid pipe.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
MH100X100 1" 25.4mm 1.22" 31.0mm 45 PSI 15 PSI Full 24 in Hg 1" 0.15 lbs
MH125X100 1-1/4" 32.0mm 1.49" 38.0mm 40 PSI 12 PSI Full 24 in Hg 1-1/2" 0.20 lbs
MH150X100 1-1/2" 38.1mm 1.77" 45.0mm 40 PSI 12 PSI Full 24 in Hg 2" 0.25 lbs
MH200X100 2" 50.8mm 2.32" 59.0mm 35 PSI 10 PSI 26 in Hg 20 in Hg 2-1/2" 0.31 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
