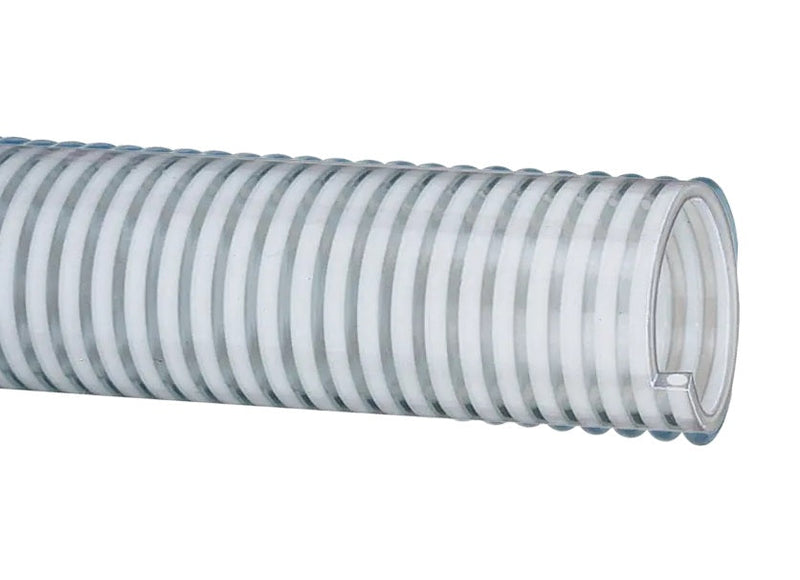

MILK-LT300X100 Tigerflex® by Kuriyama | MILK-LT™ Series | Low Temperature Food Grade Liquid Suction Hose | PVC | 3" ID | 3.42" OD | 100ft Length

MILK-LT300X100 Tigerflex® by Kuriyama | MILK-LT™ Series | Low Temperature Food Grade Liquid Suction Hose | PVC | 3" ID | 3.42" OD | 100ft Length

Save $565.23 Save $565.23
$1,497.63
$1,497.63 - $1,497.63
$1,497.63
$932.40
$932.40 - $932.40
$932.40
p>Kuriyama of America Inc.
Tigerflex® | MILK-LT™ Series | Low Temperature Food Grade Liquid Suction Hose | PVC

Designed for transferring food-grade liquids such as milk, beer, wine, and juice, as well as ice and other dairy product transfer.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: MILK-LT300X100 Kuriyama | 100 |
Brand: Tigerflex
Series: MILK-LT Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 3in
Outer Diameter: \3.42\\
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, BSE/TSE, FDA 21 CFR Part 170.199, RoHS Compliant, Applicable USDA Requirements
Applications: Food grade liquids such as milk, beer, wine and juice.
Ice transfer.
Milk and dairy product transfer.
Tube: PVC. Reinforcement: Rigid PVC helix.
Cover: - Service Temperature Range: -40°F (-40°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Specifications: 3A (01)
BSE/TSE (02)
FDA (03)
Phthalate Free (10)
RoHS (11)
USDA (12)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Precision Controlled ID and OD Dimensions - Facilitates insertion of sanitary fi ttings.
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose complies with applicable USDA(12) requirements.
  • "Cold-Flex" Materials - Hose remains flexible in severe sub-zero temperatures.
  • Transparent Construction - "See-the-flow." Allows for visual confi rmation of material flow.
  • Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
MILK-LT150X100 1-1/2" 38.1mm 1.79" 45.5mm 75 PSI 50 PSI FULL 26 in Hg 4" 0.45 lbs
MILK-LT200X100 2" 50.8mm 2.33" 59.2mm 75 PSI 50 PSI 28 in Hg 25 in Hg 5" 0.65 lbs
MILK-LT250X100 2-1/2" 63.5mm 2.87" 73.0mm 55 PSI 40 PSI 28 in Hg 24 in Hg 8" 0.84 lbs
MILK-LT300X100 3" 76.2mm 3.42" 86.9mm 55 PSI 40 PSI 28 in Hg 24 in Hg 11" 1.20 lbs
