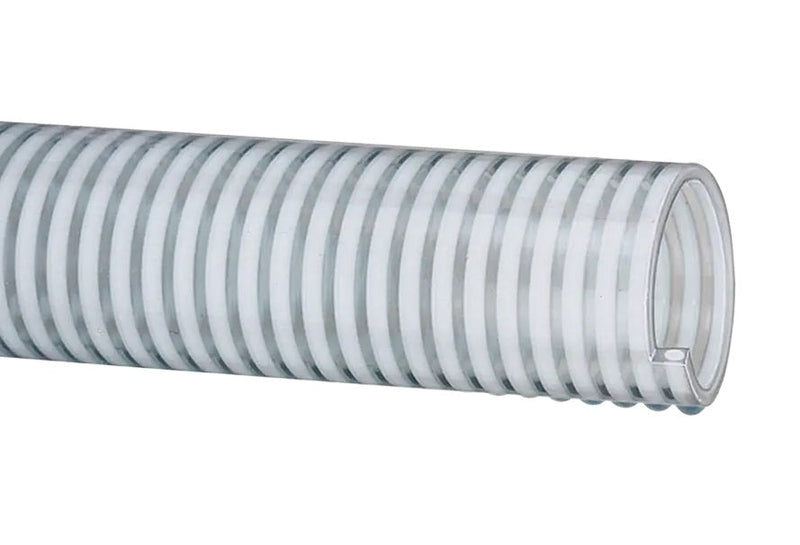

MILK250X100 Tigerflex® by Kuriyama | MILK™ Series | Food Grade Liquid Suction Hose | PVC | 2-1/2" ID | 2.87" OD | 100ft Length

MILK250X100 Tigerflex® by Kuriyama | MILK™ Series | Food Grade Liquid Suction Hose | PVC | 2-1/2" ID | 2.87" OD | 100ft Length

Save $232.28 Save $232.28
$820.88
$820.88 - $820.88
$820.88
$588.60
$588.60 - $588.60
$588.60

Kuriyama Tigerflex MILK™ Series Food Grade PVC Liquid Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: MILK250X100 Kuriyama | 100 |
Brand: Tigerflex
Series: MILK Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 2.50in
Outer Diameter: 2.87in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable USDA Requirements, RoHS Compliant
Applications: Food grade liquids such as milk, beer, wine and juice.
Ice transfer.
Milk and dairy product transfer.
Tube: PVC. Reinforcement: Rigid PVC helix.
Cover: - Service Temperature Range: -4°F (-20°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)
Specifications: 3A (01)
BSE/TSE (02)
FDA (03)
Phthalate Free (10)
RoHS (11)
USDA (12)
For more information please see the Kuriyama Tigerflex Hose Specifications Guide PDF.
What are the Features?
  • Precision Controlled ID and OD Dimensions - Facilitates insertion of sanitary fittings.
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose complies with applicable USDA(12) requirements.
  • Transparent Construction - "See-the-flow." Allows for visual confi rmation of material flow.
  • Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding.
  • Made in the USA.
  • Note: Service life may vary depending on operating conditions and type of material being conveyed.
Part Number
100ft		 ID OD Working
Pressure
(PSI)		 Vacuum
Rating
in Hg		 Min.
Bending
Radius		 Weight
in mm in mm at
68°F		 at
104°F		 at
68°F		 at
104°F		 at
68°F		 lbs/ft
MILK150X100 1-1/2" 38.1mm 1.79" 45.5mm 75 PSI 50 PSI FULL 26 in Hg 4" 0.45 lbs
MILK200X100 2" 50.8mm 2.33" 59.2mm 75 PSI 50 PSI 28 in Hg 25 in Hg 6" 0.63 lbs
MILK250X100 2-1/2" 63.5mm 2.87" 73.0mm 55 PSI 40 PSI 28 in Hg 24 in Hg 10" 0.81 lbs
MILK300X100 3" 76.2mm 3.42" 86.9mm 55 PSI 40 PSI 28 in Hg 24 in Hg 11" 1.18 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
