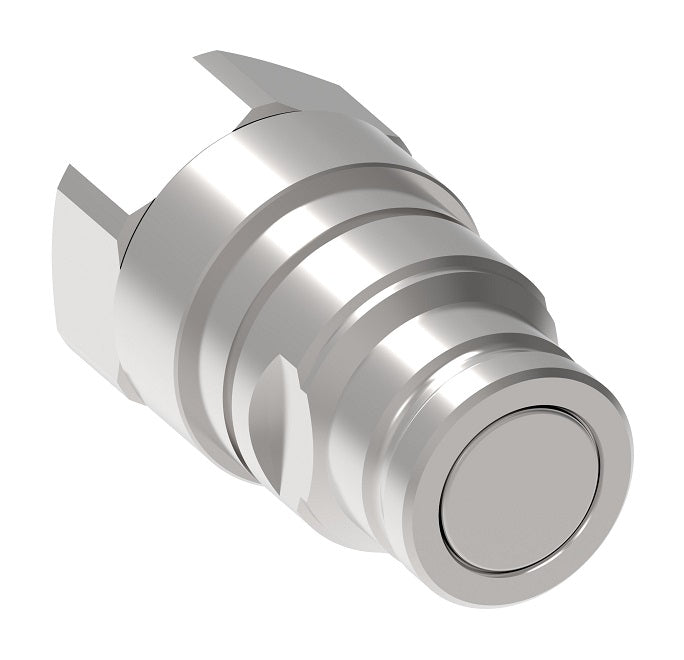

ML4DBP50F292 Hansen® by Danfoss | Quick Disconnect Coupling | MLDB Series | 1/2" Female NPT x 1/2" Flat Face/Dry Break | Plug | EPDM Seal | 316/316L Stainless Steel

Original price $310.40 - Original price $310.40
Original price
$310.40
$310.40 - $310.40
Current price $310.40

Hansen® by Danfoss
MLDB Series | Flat Face/Dry Break

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen MLDB Series stainless steel coupling is a flat face/dry break coupling used for fluid transfer applications.

The MLDB Series offers the ability to connect with less force and higher sealing performance.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: ML4DBP50F292 Danfoss
Brand: Hansen
Series: MLDB Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in ISO-16028 Flush Face QD Interchange
Material(s): 316L Stainless Steel
Seal Material(s): EPDM
Product Features:
  • Safety sleeve lock prevents accidental disconnections.
  • Push to connect with double shut-off valving.
  • Capable of working under high temperature applications.
  • Serviceable design allows for easy cleaning and seal replacement.
  • Shock-resistant color coding ring option available in 1/2" size.
  • Designed with higher flow capacity and resistance to aggressive fluids and corrosion.
Applications & Markets:
  • Process/Fluid Transfer
  • Cooling
  • Corrosive Environments
  • Chemicals/Petrochemicals
  • Pharmaceuticals
  • Food Processing
  • Electrical
Materials:
  • Standard body material: 316/316L Stainless steel corrosion resistant.
  • Standard seal material*:
    FKM: -20°C +200°C/-4°F +392°F
    EPDM (Ethylene-Propylene): -40°C +150°C/-40°F +302°F
Specifications:
  • Designed and manufactured in accordance with Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU.

* For reference only, based on Danfoss recommended temperatures.

Body
Size
Nominal Flow
Diameter
Max. Operating Pressure Rated* Flow Air Inclusion Fluid Loss Force to Connect
1/4" 5.9mm 25 bar 360 psi 15 lpm 4 gpm 0.002 ml-cc 0.001 ml-cc 85 N 19 lbf
1/2" 11.5mm 25 bar 360 psi 73 lpm 19 gpm 0.012 ml-cc 0.025 ml-cc 150 N 34 lbf
3/4" 15.0mm 25 bar 360 psi 120 lpm 32 gpm 0.030 ml-cc 0.050 ml-cc 170 N 38 lbf
1" 18.5mm 25 bar 360 psi 200 lpm 53 gpm 0.150 ml-cc 0.130 ml-cc 180 N 41 lbf

* Indicated values refer to a 1 bar/14.5 psi pressure drop.

Socket/Female (Figure 1)
Plug/Male (Figure 2)
MLDB Series | Flat Face/Dry Break
Part Number Part Number Body
Size
Coupling
Type
Thread Figure Dimensions
FKM EPDM A B C Hex 1 D E F G Hex 2
ML2DBS25F ML2DBS25F292 1/4" Socket/Female 1/4-18 Female NPT 1 1.73"
(43.9mm)
1.06"
(26.8mm)
0.96"
(24.5mm)
0.87"
(22mm)
- - - - -
ML2DBP25F ML2DBP25F292 1/4" Plug/Male 1/4-18 Female NPT 2 - - - - 1.66"
(42.1mm)
0.65"
(16.5mm)
0.96"
(24.5mm)
1.25"
(31.7mm)
0.87"
(22mm)

ML4DBS50F ML4DBS50F292 1/2" Socket/Female 1/2-14 Female NPT 1 2.44"
(61.9mm)
1.50"
(38.2mm)
1.40"
(35.5mm)
1.26"
(32mm)
- - - - -
ML4DBP50F ML4DBP50F292 1/2" Plug/Male 1/2-14 Female NPT 2 - - - - 2.39"
(60.7mm)
0.99"
(25.2mm)
1.40"
(35.5mm)
1.80"
(45.7mm)
1.26"
(32mm)

ML6DBS75F - 3/4" Socket/Female 3/4-14 Female NPT 1 3.02"
(76.8mm)
1.89"
(47.9mm)
1.83"
(46.5mm)
1.61"
(41mm)
- - - - -
ML6DBP75F - 3/4" Plug/Male 3/4-14 Female 2 - - - - 2.97"
(75.5mm)
1.29"
(32.8mm)
1.83"
(46.5mm)
2.11"
(53.6mm)
1.61"
(41mm)

ML8DBP100FBS - 1" Plug/Male 1-11 Female BSPP 2 - - - - 3.52"
(89.4mm)
1.59"
(40.4mm)
2.16"
(54.9mm)
2.60"
(66.1mm)
1.97"
(50mm)

ML8DBS100F - 1" Socket/Female 1-11 Female NPT 1 3.42"
(86.9mm)
2.26"
(57.4mm)
2.16"
(54.9mm)
1.97"
(50mm)
- - - - -
ML8DBP100F - 1" Plug/Male 1-11 Female NPT 2 - - - - 3.40"
(86.4mm)
1.59"
(40.4mm)
2.16"
(54.9mm)
2.48"
(63.1mm)
1.97"
(50mm)


Color Coding Ring Option (for 1/2" Body Size Only)
For color coded rings TPE material is used that offers excellent flexibility which allows a very good shock resistance in demanding applications.
Good thermal, chemical and weather resistance provides a great fit on the coupling and a extended life time in toughest conditions.
The color coded rings are easy to install by using the referenced tools.
Rings for Socket/Female
Blue
Part Number
Red
Part Number
Yellow
Part Number
Green
Part Number
Body Size ISO Size Series Installation Tool
Part Number
CR12FFSLB CR12FFSRD CR12FFSYL CR12FFSDG 1/2" 12.5mm MLDB CR12FFSP93
Rings for Plug/Male
Blue
Part Number
Red
Part Number
Yellow
Part Number
Green
Part Number
Body Size ISO Size Series Installation Tool
Part Number
CR12FFPLB CR12FFPRD CR12FFPYL CR12FFPDG 1/2" 12.5mm MLDB CR12FFSP93
