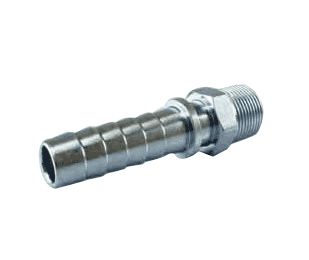

MS8-12 by Jason Industrial | Hex Air Hose Nipple | 1/2" Hose Shank x 3/4" Male NPT | Plated Steel

Name: MS8-12 by Jason Industrial | Hex Air Hose Nipple | 1/2" Hose Shank x 3/4" Male NPT | Plated Steel
Brand: Jason Industrial Inc
SKU: MS8-12 Jason
Price: 6.84 USD
Availability: InStock

Save $2.74

$9.58

$9.58 - $9.58

$9.58

$6.84

$6.84 - $6.84

$6.84

Jason Industrial Inc. Couplings & Accessories - Nipples & Accessories - Hex Air Hose Nipples - Male NPT x Hose Shank - Plated Steel

Specifications for Variant SKU: MS8-12 Jason
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 3/4in Male NPT
Material(s):	Plated Steel

Overview:
For air or many other applications, MS nipples are economical and reusable. The MS nipple accepts bands or clamps. However, each MS is especially designed with a collar behind the hex to engage the gripping fingers of an interlocking clamp. MS threads are NPT. Steel Plated. Use also as companion end of female ground joint.
Safety Warnings:
Please do not mix Jason Industrial couplings with other products.

Part Number	Hose Size	Thread Size
MS4-4	1/4"	1/4"
MS4-6	1/4"	3/8"
MS6-4	3/8"	1/4"
MS6-6	3/8"	3/8"
MS6-8	3/8"	1/2"
MS8-4	1/2"	1/4"
MS8-6	1/2"	3/8"
MS8-8	1/2"	1/2"
MS8-12	1/2"	3/4"
MS12-8	3/4"	1/2"
MS12-12	3/4"	3/4"
MS12-16	3/4"	1"
MS16-12	1"	3/4"
MS16-16	1"	1"
MS20-20	1-1/4"	1-1/4"
MS24-24	1-1/2"	1-1/2"
MS32-32	2"	2"
MS40-40	2-1/2"	2-1/2"
MS48-48	3"	3"
MS64-64	4"	4"

Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
