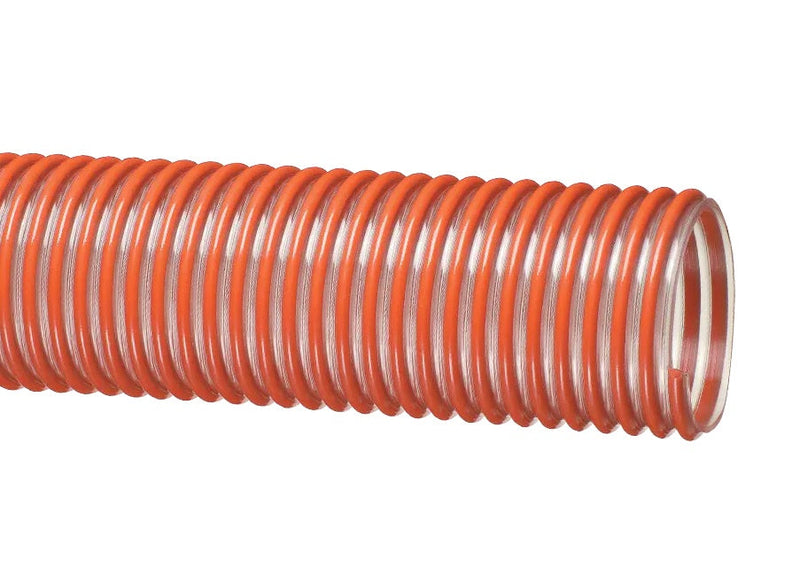

MULCH500X100 Tigerflex® by Kuriyama | MULCH™ Series | Heavy Duty Material Handling Hose | PVC | 5" ID | 5.61" OD | 100ft Length

MULCH500X100 Tigerflex® by Kuriyama | MULCH™ Series | Heavy Duty Material Handling Hose | PVC | 5" ID | 5.61" OD | 100ft Length

$0.00 - $0.00
$0.00
$1,400.40
$1,400.40 - $1,400.40
$1,400.40
p>Kuriyama of America Inc.
Tigerflex® | MULCH™ Series | Heavy Duty Material Handling Hose | PVC

Designed for for standard-duty material handling.

Ideal for delivering mulch, bark, wood chips, soil, seed, compost, and other surfacing materials.

Made in the USA.


Package Quantity: 100 Foot

Specifications for Variant SKU: MULCH500X100 Kuriyama | 100 |
Brand: Tigerflex
Series: MULCH Series
Hose Color(s): Red & Clear/Semi-Clear
Internal Diameter: 5in
Outer Diameter: 5.61in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection
Compatible with the following Series: AL-MHS Series  |   AL-MHM Series  |   AL-MHF Series  |   AL-MHD Series  |   AL-MHA Series
Standard Duty Material Handling Hose

Tigerflex™ MULCH Series

Abrasion-resistant PVC material handling hose for the delivery of mulch, bark, wood chips, soil, seed, compost and other surfacing materials.

⚙

Abrasion Resistant PVC

Durable tube for longer service life

◎

See-the-Flow

Transparent construction

✓

Convoluted Cover

Increased hose flexibility

★

Made in the USA

Manufactured domestically

1

What is this product used for?
  • Material handling — standard duty
  • Mulch, bark, wood chips and other surfacing material delivery
  • Soil, seed and compost delivery
2

What are the key specifications?
Tube

PVC

Reinforcement

Rigid PVC helix

Service Temperature Range

-4°F (-20°C) to +150°F (+65°C)
(Actual service temperature range is application dependent)

Compliance

Phthalate Free (10), RoHS (11) — see the Kuriyama Tigerflex Hose Specifications Guide PDF

3

What are the main product features?
  • Abrasion Resistant PVC Tube — Formulated from highly durable PVC compounds for increased abrasion and tear resistance versus standard PVC hoses.
  • Transparent Construction — "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover — Provides increased hose flexibility.
  • Made in the USA — Manufactured domestically.
4

Which sizes or configurations are available?
Part Number ID OD Working Pressure (PSI) Vacuum Rating (in Hg) Min. Bending Radius Length Weight (lbs/ft)
at 68°F at 104°F at 68°F at 104°F
MULCH400X100 4" (101.6 mm) 4.57" (116.0 mm) 35 PSI 15 PSI Full 28 in Hg 8" 100 ft 1.42
MULCH500X100 5" (127.0 mm) 5.61" (142.6 mm) 30 PSI 12 PSI 24 in Hg 22 in Hg 14" 100 ft 1.75
MULCH600X100 6" (153.4 mm) 6.79" (172.4 mm) 25 PSI 10 PSI 24 in Hg 22 in Hg 16" 100 ft 2.42
5

Where can I find product documents?
PDF

Kuriyama Tigerflex Hose Specifications Guide PDF

For more information on specification codes and hose details, consult the Kuriyama Tigerflex Hose Specifications Guide.

i
Note: Service life may vary depending on operating conditions and type of material being conveyed.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
