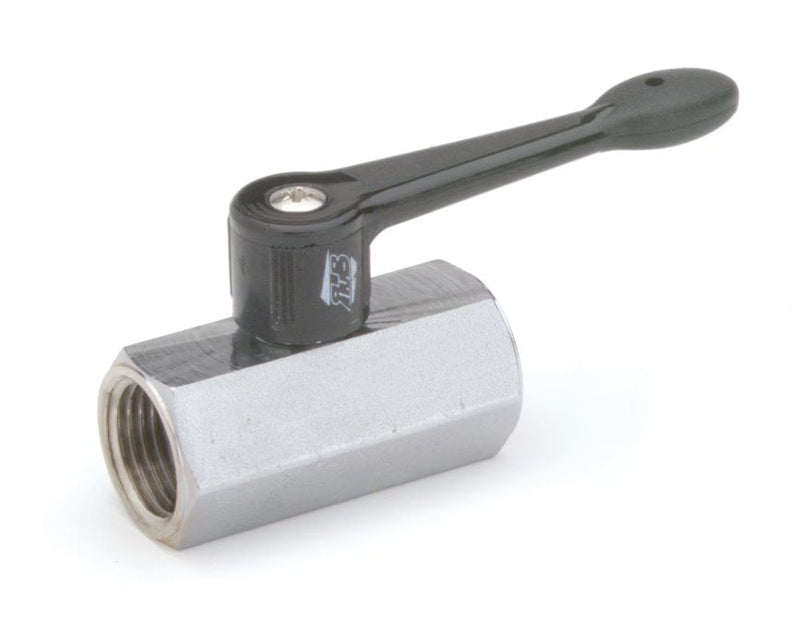

MV200-8 by Parker | Ball Valve | 1/2" Female Pipe Thread | .98" Hex | 3.83" Length | Straight | Chrome Plated Brass | Pack of 10

Save $135.82

$339.55

$339.55 - $339.55

$339.55

$203.73

$203.73 - $203.73

$203.73

by Parker Hannifin
Ball Valves Mini Series 200/608/609:Female Pipe Ends, Lever Handle, Mini Ball Valve MV200

Package Quantity: 10 Units

Specifications for Variant SKU: MV200-8 Parker \| 10 \|
Series:	MV200 Series
Shape (Orientation):	Straight
Material(s):	Chrome-Plated Brass, Polyamide
Seal Material(s):	PTFE
Special Properties:	Valved

Specification:
Product Features:	Chrome Plated Brass Body Chrome Plated Brass Ball PTFE Seats/Seals Fluorocarbon Stem Seal 608/609 Polyamide Wedge Handle 200 Polyamide Lever Handle
Style:	MV-Micro Valve
Type:	608-Male/Female 609-Female/Female 200-Female/Female 21-Oval Handle
Temperature Range:	0° to +200° F (-17.7° to +93.3° C)
Pressure Range:	MV200: 200 PSI (13.7 bar) MV608/609: Vacuum Service 28 Inches Hg MV608/609: 450 PSI (31.0 bar)


Part Number	Pipe Thread	Hex	B	C	H	L	Flow Diameter (D)
MV200-2	1/8"	.83"	1.71"	1.20"	.91"	2.83"	.31"
MV200-4	1/4"	.83"	1.71"	1.20"	.91"	2.83"	.31"
MV200-6	3/8"	.83"	1.71"	1.20"	.91"	2.83"	.31"
MV200-8	1/2"	.98"	2.11"	1.28"	1.10"	2.83"	.39"
