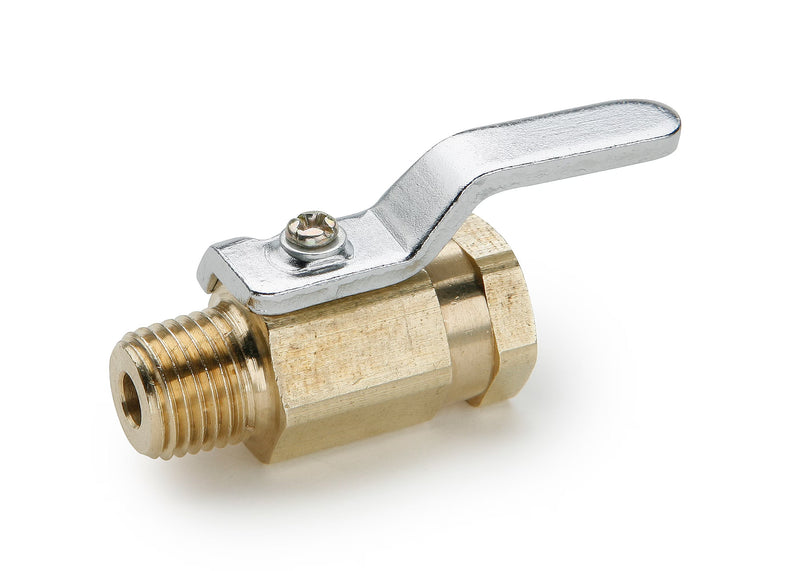

MV708-4 by Parker | Ball Valve | 1/4" Male-Female Pipe Thread | 11/16" Hex (B) | 2.31" Length | Straight | Brass | Pack of 10

MV708-4 by Parker | Ball Valve | 1/4" Male-Female Pipe Thread | 11/16" Hex (B) | 2.31" Length | Straight | Brass | Pack of 10

Save $22.45 Save $22.45
$158.98
$158.98 - $158.98
$158.98
$136.53
$136.53 - $136.53
$136.53

by Parker Hannifin
Ball Valves Micro Series 708/709:Male-Female Pipe Ends, Mini Ball Valve MV708

Package Quantity: 10 Units

Specifications for Variant SKU: MV708-4 Parker | 10 |
Series: MV708 Series
Shape (Orientation): Straight
Material(s): Brass, Chrome-Plated Brass, Chrome-Plated Steel
Seal Material(s): PTFE
Special Properties: Valved
Product Features:
  • Brass Body
  • Chrome Plated Brass Ball
  • PTFE Seats/Seals
  • Nitrile Stem Seal
  • Chrome Plated Steel Handle
Style:
  • MV-Micro Valve
Type:
  • 708-Male/Female
  • 709-Female/Female
Material:
  • SS – Stainless Steel
Specification:
Temperature Range: -35° to +300° F (-37.2 to +148.8° C)
Pressure Range:
  • Up to 500 PSI (34.4 bar)
  • Vacuum service 28 inches Hg
Part Number Pipe Thread (NPT) Hex (B) H L M N P Flow Diameter (D)
MV708-2 1/8" 9/16" 1.18" .63" 1.62" .93" .38" .180"
MV708-4 1/4" 11/16" 1.52" .70" 1.57" .79" .38" .210"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
