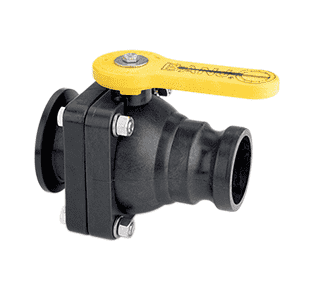

MVSF220FP Banjo Polypropylene Manifold "Stubby" Valve - Full Port - 2" Flange x 2" Male Adapter - Opening Thru Ball: 2" - 100 PSI

MVSF220FP by Banjo | Manifold Flange Connection for Full Port Manifold "Stubby" Valve | 2" Flange x 2" Male Adapter | Opening Thru Ball: 2" | 150 PSI | Polypropylene | Pack of 9

Save $99.87 Save $99.87
$581.43
$581.43 - $581.43
$581.43
$481.56
$481.56 - $481.56
$481.56

Banjo Manifold Flange Connections
2" Manifold "Stubby" Valves - Polypropylene

Package Quantity: 9 EA

Specifications for Variant SKU: MVSF220FP Banjo | 9 |
Shape (Orientation): Straight
Ends Configuration: 2in Full Port Manifold Flange, 2in Male Cam & Groove
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • Stainless steel bolts
  • Glass reinforced polypropylene
  • Multiple design options
  • Unique patented compact design
  • Lightweight
Part Number Description End Type Opening Thru Ball Max PSI
VSMT200CF Standard Port 2" Flange x 2" Male NPT 1-1/2" 150 PSI
VSF200CF Standard Port 2" Flange x 2" Male Adapter 1-1/2" 100 PSI
MVS220FP Full Port 2" Flange x 2" Female NPT 2" 300 PSI
MVSF220FP Full Port 2" Flange x 2" Male Adapter 2" 150 PSI
MVS220CF Full Port 2" Flange x 2" FP Flange 2" 150 PSI
MVSMT220FP Full Port 2" Flange x 2" Male NPT 2" 225 PSI
Replacement Parts for VSF200CF, VSMT200CF, MVS220FP, MVSF220FP, MVS220CF, MVSMT220FP
Item Part Number Description Quantity Required
3 V20021 Handle Washer 1
4 V20020 Handle Bolt 1
6 V20018 Lock Washer 4
7 V20019 3/8" 316 SS Hex Nut 4
8 V20010SS Body Bolt 4
9 V20060* Upper Stem Bushing 1
10 V20060* Thrust Bearing 1
11 VS20151 Stem 1
Replacement Parts for VSF200CF, VSMT200CF
Item Part Number Description Quantity Required
1 VMT20254 2" Male NPT Body (VSMT200CF) 1
1 VF20254 2" Male Quick Connect Body (VSF200CF) 1
2 VS20152SH 2" Short Handle 1
12 VS20258A* Seat 2
13 VS20255* Ball 1
14 V21204* Body Gasket 1

* Is included in Repair Kit

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
