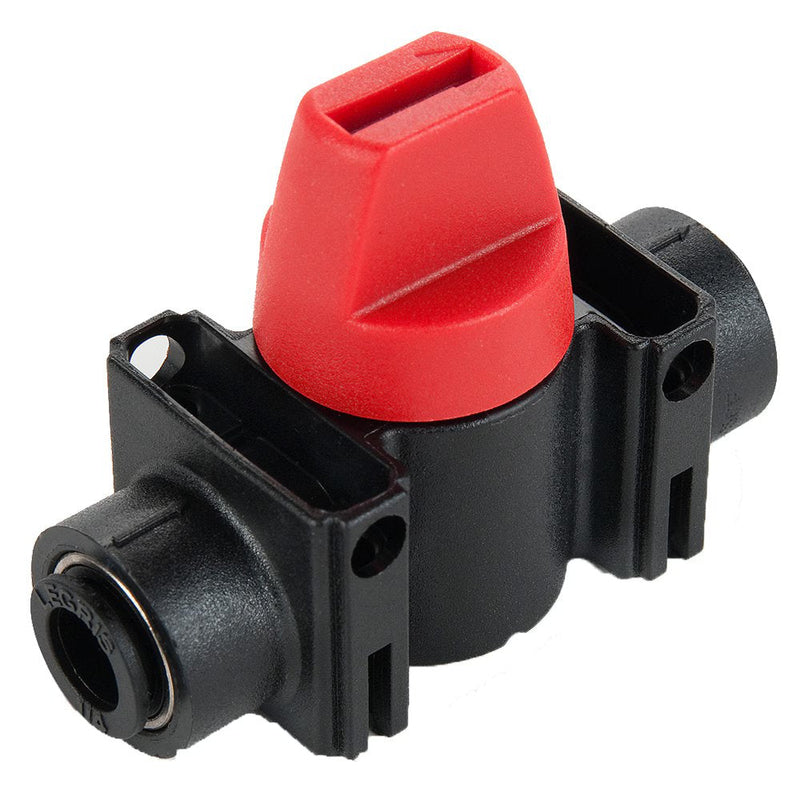

MVV308-10M-6G by Parker | Mini Ball Valve Vented | 10 mm Push-to-Connect x G3/8" Male BSPP Thread | 74 mm Length | 43 mm Width | 30 mm Height | Straight | Nylon | Pack of 5

Save $217.33

$543.33

$543.33 - $543.33

$543.33

$326.00

$326.00 - $326.00

$326.00

by Parker Hannifin
Mini Ball Valves:MVV308 Mini Ball Valve Vented SPP to Push-To-Connect Port

Package Quantity: 5 Units

Specifications for Variant SKU: MVV308-10M-6G Parker \| 5 \|
Series:	MVV308 Series
Shape (Orientation):	Straight
Material(s):	Nylon, Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Valved

Product Features:	Nylon body Brass stem Stainless steel gripping ring NBR stem seal NBR O-ring Nylon Handle Lightweight and compact
Markets:	Factory/Process Automation Packaging Petrochemical Pneumatics Semi-Conductor
Applications:	Robotics Packaging Textile Machine Tools Pneumatic Systems Vacuum
Pressure Range:	145 PSI (9.9 bar)
Temperature Range:	-4° to 175° F (-20° to +79.4° C)
Vacuum Capability:	28” Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	Tube Size	BSPP	F	H	J	K	L	L1	N
MVV308-6M-2G	6 mm	G1/8"	13 mm	37 mm	14.0	22 mm	62 mm	37 mm	16.20 mm
MVV308-8M-4G	8 mm	G1/4"	16 mm	37 mm	17.5	22 mm	61 mm	35 mm	16.20 mm
MVV308-10M-6G	10 mm	G3/8"	20 mm	43 mm	22.0	30 mm	74 mm	41 mm	22.00 mm
