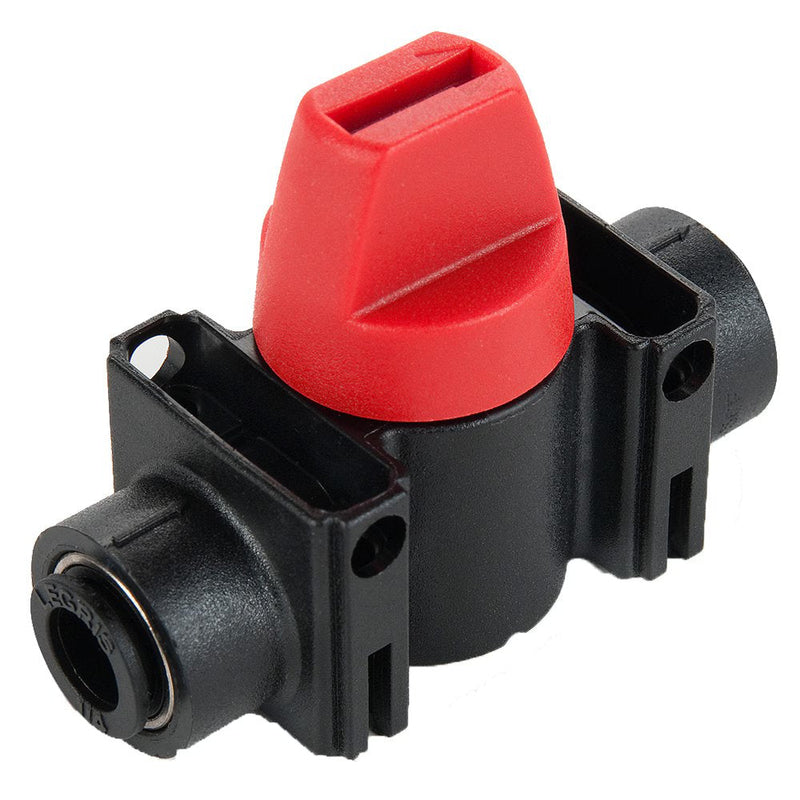

MVV308-8M-4G by Parker | Mini Ball Valve Vented | 8 mm Push-to-Connect x G1/4" Male BSPP Thread | 61 mm Length | 37 mm Width | 22 mm Height | Straight | Nylon | Pack of 10

Save $295.47

$738.67

$738.67 - $738.67

$738.67

$443.20

$443.20 - $443.20

$443.20

by Parker Hannifin
Mini Ball Valves:MVV308 Mini Ball Valve Vented SPP to Push-To-Connect Port

Package Quantity: 10 Units

Specifications for Variant SKU: MVV308-8M-4G Parker \| 10 \|
Series:	MVV308 Series
Shape (Orientation):	Straight
Material(s):	Nylon, Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Valved

Product Features:	Nylon body Brass stem Stainless steel gripping ring NBR stem seal NBR O-ring Nylon Handle Lightweight and compact
Markets:	Factory/Process Automation Packaging Petrochemical Pneumatics Semi-Conductor
Applications:	Robotics Packaging Textile Machine Tools Pneumatic Systems Vacuum
Pressure Range:	145 PSI (9.9 bar)
Temperature Range:	-4° to 175° F (-20° to +79.4° C)
Vacuum Capability:	28” Hg
Compatible Tubing:	Semi-rigid nylon Polyurethane 95 Durometer Shore A Nylon Fluoropolymer


Part Number	Tube Size	BSPP	F	H	J	K	L	L1	N
MVV308-6M-2G	6 mm	G1/8"	13 mm	37 mm	14.0	22 mm	62 mm	37 mm	16.20 mm
MVV308-8M-4G	8 mm	G1/4"	16 mm	37 mm	17.5	22 mm	61 mm	35 mm	16.20 mm
MVV308-10M-6G	10 mm	G3/8"	20 mm	43 mm	22.0	30 mm	74 mm	41 mm	22.00 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
