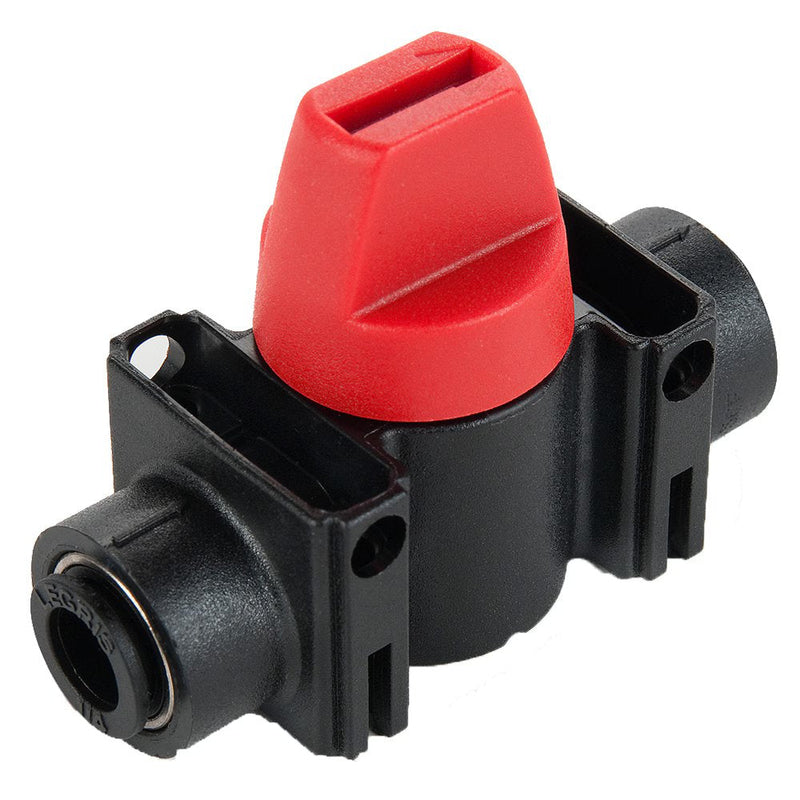

MVV309-10M by Parker | Mini Ball Valve Vented | 10 mm Push-to-Connect | 66 mm Length | 43 mm Width | 30 mm Height | Straight | Nylon | Pack of 5

MVV309-10M by Parker | Mini Ball Valve Vented | 10 mm Push-to-Connect | 66 mm Length | 43 mm Width | 30 mm Height | Straight | Nylon | Pack of 5

Save $120.80 Save $120.80
$302.00
$302.00 - $302.00
$302.00
$181.20
$181.20 - $181.20
$181.20

by Parker Hannifin
Mini Ball Valves:MVV309 Mini Ball Valve Vented Push-To-Connect Ports - Metric

Package Quantity: 5 Units

Specifications for Variant SKU: MVV309-10M Parker | 5 |
Series: MVV309 Series
Shape (Orientation): Straight
Material(s): Nylon, Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Valved
Product Features:
  • Nylon body
  • Brass stem
  • Stainless steel gripping ring
  • NBR stem seal
  • NBR O-ring
  • Nylon Handle
  • Lightweight and compact
Markets:
  • Factory/Process Automation
  • Packaging
  • Petrochemical
  • Pneumatics
  • Semi-Conductor
Applications:
  • Robotics
  • Packaging
  • Textile
  • Machine Tools
  • Pneumatic Systems
  • Vacuum
Pressure Range: 145 PSI (9.9 bar)
Temperature Range: -4° to 175° F (-20° to +79.4° C)
Vacuum Capability: 28” Hg
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size H H1 J K L N
MVV309-4M 4 mm 37.00 mm 7.50 mm 15.00 mm 22.00 mm 51 mm 16.20 mm
MVV309-6M 6 mm 37.00 mm 7.50 mm 15.00 mm 22.00 mm 52 mm 16.20 mm
MVV309-8M 8 mm 37.00 mm 7.50 mm 15.00 mm 22.00 mm 52 mm 16.20 mm
MVV309-10M 10 mm 43.00 mm 11.00 mm 20.00 mm 30.00 mm 66 mm 22.00 mm
MVV309-12M 12 mm 43.00 mm 11.00 mm 20.00 mm 30.00 mm 66 mm 22.00 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
