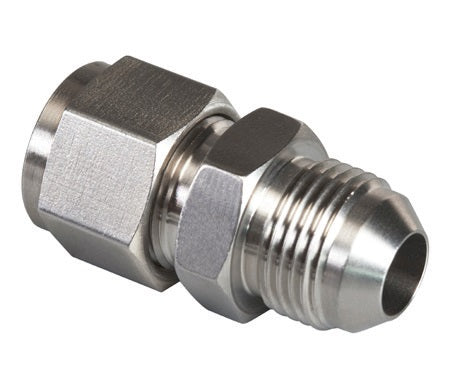

N2402-08-08-SS by Brennan Inc. | -08 Instrumentation Fitting x -08 Male JIC | Straight | Stainless Steel

N2402-08-08-SS by Brennan Inc. | -08 Instrumentation Fitting x -08 Male JIC | Straight | Stainless Steel

$39.24 - $39.24
$39.24
$43.16
$43.16 - $43.16
$43.16

Brennan Inc.
Double Ferrule Tube Fittings: N2402 - Instrumentation Fitting x Male JIC Straight
Specifications for Variant SKU: N2402-08-08-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Compression , 1/2in Male JIC
Material(s): Stainless Steel
Part Number Material T Tube OD AN Tube Flare A C D E Min F A/F G A/F H S Thread
N2402-02-02-SS Stainless Steel 1/8" 1/8" 32.3mm 15.3mm 12.7mm 1.50mm 7/16" 7/16" 25.7mm 5/16-24"
N2402-04-04-SS Stainless Steel 1/4" 1/4" 37.6mm 17.8mm 15.3mm 4.3mm 1/2" 9/16" 30.2mm 7/16-20"
N2402-06-06-SS Stainless Steel 3/8" 3/8" 39.6mm 19.3mm 16.8mm 7.10mm 5/8" 11/16" 32.3mm 9/16-18"
N2402-08-08-SS Stainless Steel 1/2" 1/2" 46.0mm 21.8mm 22.9mm 9.9mm 13/16" 7/8" 35.8mm 3/4-16"
N2402-12-12-SS Stainless Steel 3/4" 3/4" 53.3mm 21.8mm 24.4mm 15.5mm 1-1/8" 1-1/8" 43.2mm 1-1/16-12"
N2402-16-16-SS Stainless Steel 1" 1" 61.5mm 26.4mm 31.2mm 21.3mm 1-3/8" 1-1/2" 49.3mm 1-5/16-12"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
