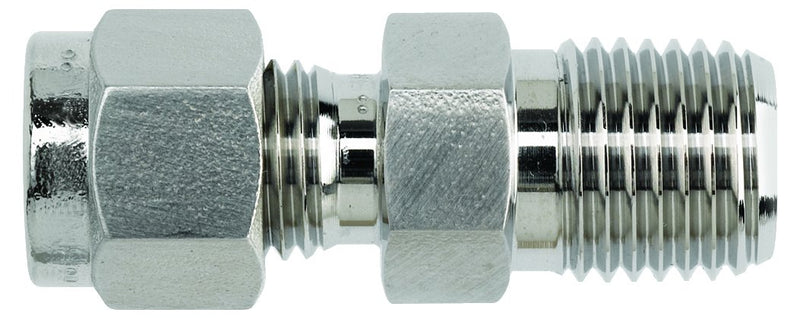

N2404-05-02-SS by Brennan Inc. | -05 Instrumentation Fitting x -02 Male NPT | Straight | Stainless Steel

N2404-05-02-SS by Brennan Inc. | -05 Instrumentation Fitting x -02 Male NPT | Straight | Stainless Steel

Save $1.29 Save $1.29
$11.64
$11.64 - $11.64
$11.64
$10.35
$10.35 - $10.35
$10.35

Brennan Inc.
Double Ferrule Tube Fittings: N2404 - Instrumentation Fitting x Male NPT Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2404-05-02-SS Brennan
Shape (Orientation): Straight
Material(s): Stainless Steel
Part Number Material T Tube OD P NPT Male A B C D E Min. F A/F G A/F H
N2404-02-02-B Brass 1/8" 1/8" 30.5mm 9.6mm 15.3mm 12.7mm 2.4mm 11mm 11mm 23.9mm
N2404-02-04-B Brass 1/8" 1/4" 35.6mm 14.3mm 15.3mm 12.7mm 2.4mm 14mm 11mm 29.0mm
N2404-03-02-B Brass - - - - - - - - - -
N2404-04-02-B Brass 1/4" 1/8" 32.8mm 9.6mm 17.8mm 15.3mm 4.8mm 14mm 14mm 25.4mm
N2404-04-04-B Brass 1/4" 1/4" 37.8mm 14.3mm 17.8mm 15.3mm 4.8mm 14mm 14mm 30.5mm
N2404-04-06-B Brass 1/4" 3/8" 38.4mm 14.3mm 17.8mm 15.3mm 4.8mm 19mm 14mm 31.0mm
N2404-04-08-B Brass 1/4" 1/2" 44.7mm 19.1mm 17.8mm 15.3mm 4.8mm 22mm 14mm 37.4mm
N2404-05-04-B Brass 5/16" 1/4" 38.6mm 14.3mm 18.5mm 16.3mm 6.3mm 14mm 16mm 31.2mm
N2404-06-02-B Brass 3/8" 1/8" 35.3mm 9.6mm 19.3mm 16.8mm 4.8mm 16mm 17mm 27.9mm
N2404-06-04-B Brass 3/8" 1/4" 39.8mm 14.3mm 19.3mm 16.8mm 7.1mm 16mm 17mm 32.5mm
N2404-06-06-B Brass 3/8" 3/8" 39.8mm 14.3mm 19.3mm 16.8mm 7.1mm 19mm 17mm 32.5mm
N2404-06-08-B Brass 3/8" 1/2" 41.2mm 19.1mm 19.3mm 16.8mm 7.1mm 22mm 17mm 38.9mm
N2404-08-04-B Brass 1/2" 1/4" 43.4mm 14.3mm 21.8mm 22.9mm 7.1mm 22mm 22mm 33.3mm
N2404-08-06-B Brass 1/2" 3/8" 43.4mm 14.3mm 21.8mm 22.9mm 9.6mm 22mm 22mm 33.3mm
N2404-08-08-B Brass 1/2" 1/2" 49.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22mm 22mm 38.9mm
N2404-08-12-B Brass 1/2" 3/4" 50.5mm 19.1mm 21.8mm 22.9mm 10.4mm 27mm 22mm 40.4mm
N2404-10-08-B Brass 5/8" 1/2" 49.0mm 19.1mm 21.8mm 24.4mm 10.4mm 24mm 25mm 38.9mm

N2404-01-01-SS Stainless Steel 1/16" 1/16" 23.9mm 9.6mm 11.0mm 8.6mm 1.3mm 8mm 8mm 20.0mm
N2404-01-02-SS Stainless Steel 1/16" 1/8" 26.2mm 9.6mm 11.0mm 8.6mm 1.3mm 14mm 8mm 22.4mm
N2404-02-01-SS Stainless Steel - - - - - - - - - -
N2404-02-02-SS Stainless Steel 1/8" 1/8" 30.5mm 9.6mm 15.3mm 12.7mm 2.4mm 11mm 11mm 23.9mm
N2404-02-04-SS Stainless Steel 1/8" 1/4" 35.6mm 14.3mm 15.3mm 12.7mm 2.4mm 14mm 11mm 29.0mm
N2404-03-02-SS Stainless Steel - - - - - - - - - -
N2404-04-02-SS Stainless Steel 1/4" 1/8" 32.8mm 9.6mm 17.8mm 15.3mm 4.8mm 14mm 14mm 25.4mm
N2404-04-04-SS Stainless Steel 1/4" 1/4" 37.8mm 14.3mm 17.8mm 15.3mm 4.8mm 14mm 14mm 30.5mm
N2404-04-06-SS Stainless Steel 1/4" 3/8" 38.4mm 14.3mm 17.8mm 15.3mm 4.8mm 19mm 14mm 31.0mm
N2404-04-08-SS Stainless Steel 1/4" 1/2" 44.7mm 19.1mm 17.8mm 15.3mm 4.8mm 22mm 14mm 37.4mm
N2404-05-02-SS Stainless Steel - - - - - - - - - -
N2404-05-04-SS Stainless Steel 5/16" 1/4" 38.6mm 14.3mm 18.5mm 16.3mm 6.3mm 14mm 16mm 31.2mm
N2404-06-02-SS Stainless Steel 3/8" 1/8" 35.3mm 9.6mm 19.3mm 16.8mm 4.8mm 16mm 17mm 27.9mm
N2404-06-04-SS Stainless Steel 3/8" 1/4" 39.8mm 14.3mm 19.3mm 16.8mm 7.1mm 16mm 17mm 32.5mm
N2404-06-06-SS Stainless Steel 3/8" 3/8" 39.8mm 14.3mm 19.3mm 16.8mm 7.1mm 19mm 17mm 32.5mm
N2404-06-08-SS Stainless Steel 3/8" 1/2" 41.2mm 19.1mm 19.3mm 16.8mm 7.1mm 22mm 17mm 38.9mm
N2404-06-12-SS Stainless Steel - - - - - - - - - -
N2404-08-02-SS Stainless Steel - - - - - - - - - -
N2404-08-04-SS Stainless Steel 1/2" 1/4" 43.4mm 14.3mm 21.8mm 22.9mm 7.1mm 22mm 22mm 33.3mm
N2404-08-08-SS Stainless Steel 1/2" 1/2" 49.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22mm 22mm 38.9mm
N2404-08-12-SS Stainless Steel 1/2" 3/4" 50.5mm 19.1mm 21.8mm 22.9mm 10.4mm 27mm 22mm 40.4mm
N2404-08-16-SS Stainless Steel 1/2" 1" 57.1mm 23.8mm 21.8mm 22.9mm 10.4mm 35mm 22mm 47.0mm
N2404-10-06-SS Stainless Steel 5/8" 3/8" 44.2mm 14.3mm 21.8mm 24.4mm 9.6mm 24mm 25mm 34.0mm
N2404-10-08-SS Stainless Steel 5/8" 1/2" 49.0mm 19.1mm 21.8mm 24.4mm 10.4mm 24mm 25mm 38.9mm
N2404-10-12-SS Stainless Steel - - - - - - - - - -
N2404-12-06-SS Stainless Steel - - - - - - - - - -
N2404-12-08-SS Stainless Steel 3/4" 1/2" 50.5mm 19.1mm 21.8mm 24.4mm 10.4mm 27mm 28.5mm 40.4mm
N2404-12-12-SS Stainless Steel 3/4" 3/4" 50.5mm 19.1mm 21.8mm 24.4mm 15.8mm 27mm 28.5mm 40.4mm
N2404-12-16-SS Stainless Steel 3/4" 1" 57.1mm 23.8mm 21.8mm 24.4mm 15.8mm 35mm 28.5mm 47.0mm
N2404-14-12-SS Stainless Steel 7/8" 3/4" 50.5mm 19.1mm 21.8mm 26.0mm 15.8mm 30mm 32mm 40.4mm
N2404-16-08-SS Stainless Steel 1" 1/2" 57.4mm 19.1mm 26.4mm 31.2mm 10.4mm 35mm 38mm 45.2mm
N2404-16-12-SS Stainless Steel 1" 3/4" 57.4mm 19.1mm 26.4mm 31.2mm 15.8mm 35mm 38mm 45.2mm
N2404-16-16-SS Stainless Steel 1" 1" 62.2mm 23.8mm 26.4mm 31.2mm 22.3mm 35mm 38mm 50.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
