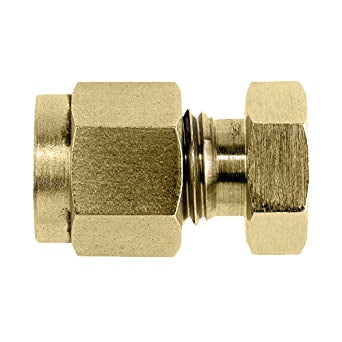

N2408-02-B by Brennan Inc. | -02 Instrumentation Fitting Cap | Brass

N2408-02-B by Brennan Inc. | -02 Instrumentation Fitting Cap | Brass

Save $0.64 Save $0.64
$5.79
$5.79 - $5.79
$5.79
$5.15
$5.15 - $5.15
$5.15

Brennan Inc.
Double Ferrule Tube Fittings: N2408 - Instrumentation Fitting Cap
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2408-02-B Brennan
Material(s): Brass
Part Number Material T Tube OD A C D F A/F G A/F H
N2408-01-B Brass 1/16" 13.0mm 11.0mm 8.6mm 11mm 8mm 11.2mm
N2408-02-B Brass 1/8" 20.0mm 15.3mm 12.7mm 11mm 11mm 13.5mm
N2408-04-B Brass 1/4" 23.4mm 17.8mm 15.3mm 14.0mm 14.0mm 16.0mm
N2408-06-B Brass 3/8" 25.7mm 19.3mm 16.8mm 17.0mm 17.0mm 18.3mm
N2408-08-B Brass 1/2" 29.2mm 21.8mm 22.9mm 22.0mm 22.0mm 19.0mm

N2408-01-SS Stainless Steel 1/16" 13.0mm 11.0mm 8.6mm 11.0mm 8.0mm 11.2mm
N2408-02-SS Stainless Steel 1/8" 20.0mm 15.3mm 12.70mm 11.0mm 11.0mm 13.5mm
N2408-04-SS Stainless Steel 1/4" 23.4mm 17.8mm 15.3mm 14.0mm 14.0mm 16.0mm
N2408-05-SS Stainless Steel 5/16" 24.4mm 18.5mm 16.3mm 16.0mm 16.0mm 17.0mm
N2408-06-SS Stainless Steel 3/8" 25.7mm 19.3mm 16.8mm 17.0mm 17.0mm 18.3mm
N2408-08-SS Stainless Steel 1/2" 29.2mm 21.8mm 22.9mm 22.0mm 22.0mm 19.0mm
N2408-10-SS Stainless Steel 5/8" 30.0mm 21.8mm 24.4mm 24.0mm 25.0mm 19.8mm
N2408-12-SS Stainless Steel 3/4" 31.5mm 21.8mm 24.4mm 27.0mm 28.5mm 21.4mm
N2408-14-SS Stainless Steel 7/8" 34.0mm 21.8mm 25.9mm 35.0mm 32.0mm 23.9mm
N2408-16-SS Stainless Steel 1" 38.4mm 26.4mm 31.2mm 35.0mm 38.0mm 26.2mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
