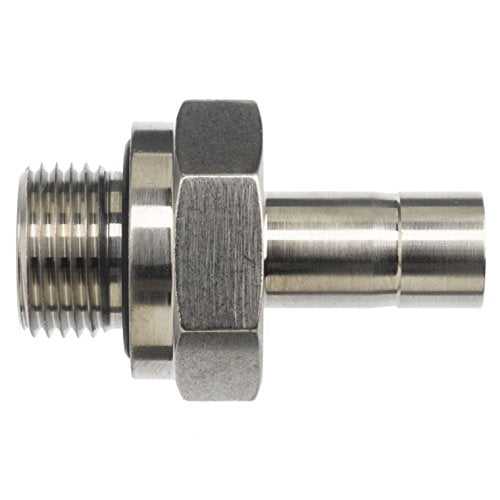

N2429-08-10-SS by Brennan Inc. | -08 Stand Pipe x -10 Male O-Ring Boss | Straight | Stainless Steel

N2429-08-10-SS by Brennan Inc. | -08 Stand Pipe x -10 Male O-Ring Boss | Straight | Stainless Steel

$25.07 - $25.07
$25.07
$27.57
$27.57 - $27.57
$27.57

Brennan Inc.
Double Ferrule Tube Fittings: N2429 - Stand Pipe x Male O-Ring Boss Straight
Specifications for Variant SKU: N2429-08-10-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Stem, 5/8in Male O-Ring Boss
Material(s): Stainless Steel
Part Number Material S UNF Male T Tube OD A B E Min. F FD A/F O-Ring Part No.
N2429-02-02-SS Stainless Steel 5/16-24" 1/8" 32.5mm 8.6mm 2.4mm 14mm 13.8mm 4001-02
N2429-04-04-SS Stainless Steel 7/16-24" 1/4" 39.2mm 10.4mm 4.8mm 19mm 18.8mm 4001-04
N2429-05-05-SS Stainless Steel 1/2-24" 5/16" 41.7mm 11.2mm 6.3mm 22mm 21.8mm 4001-05
N2429-06-04-SS Stainless Steel - - - - - - - -
N2429-06-06-SS Stainless Steel 9/16-24" 3/8" 43.2mm 12.0mm 7.1mm 24mm 23.6mm 4001-06
N2429-08-08-SS Stainless Steel 3/4-24" 1/2" 49.5mm 12.0mm 9.9mm 27mm 26.8mm 4001-08
N2429-08-10-SS Stainless Steel - - - - - - - -
N2429-12-12-SS Stainless Steel 1-1/16-12" 3/4" 55.0mm 14.3mm 15.0mm 38mm 37.8mm 4001-12
N2429-16-16-SS Stainless Steel 1-5/16-12" 1" 62.5mm 14.3mm 19.8mm 45mm 44.0mm 4001-16
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
