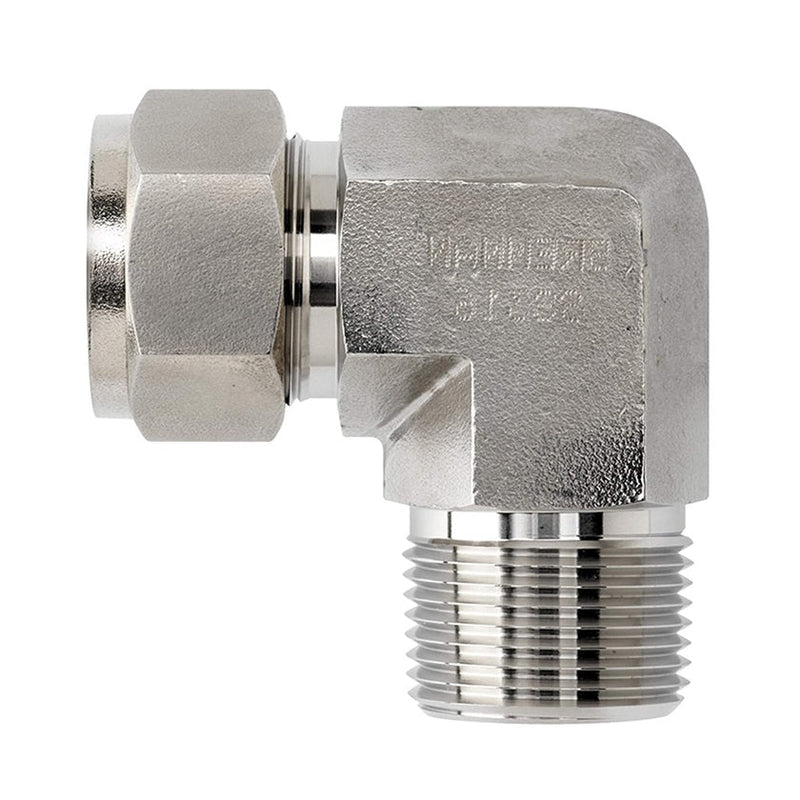

N2501-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Male NPT | 90° Elbow | Stainless Steel

N2501-04-04-SS by Brennan Inc. | -04 Instrumentation Fitting x -04 Male NPT | 90° Elbow | Stainless Steel

Save $3.16 Save $3.16
$28.40
$28.40 - $28.40
$28.40
$25.24
$25.24 - $25.24
$25.24

Brennan Inc.
Double Ferrule Tube Fittings: N2501 - Instrumentation Fitting x Male NPT 90° Elbow
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2501-04-04-SS Brennan
Shape (Orientation): 90 Degree
Material(s): Stainless Steel
Part Number Material T Tube OD P NPT Female A B C D E Min. F A/F G A/F HX HY
N2502-02-02-B Brass 1/8" 1/8" 24.6mm 10.4mm 15.3mm 12.7mm 2.4mm 14.0mm 11.0mm 18.0mm 19.0mm
N2502-04-02-B Brass 1/4" 1/8" 26.9mm 10.4mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 19.6mm 19.0mm
N2502-04-04-B Brass 1/4" 1/4" 29.7mm 15.0mm 17.8mm 15.3mm 4.8mm 19.0mm 14.0mm 22.4mm 22.4mm
N2502-04-06-B Brass 1/4" 3/8" 31.8mm 15.0mm 17.8mm 15.3mm 4.8mm 22.0mm 14.0mm 24.4mm 22.4mm
N2501-06-02-B Brass 3/8" 1/8" 30.5mm 10.4mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 23.2mm 19.1mm
N2502-06-04-B Brass 3/8" 1/4" 31.2mm 15.0mm 19.3mm 16.8mm 7.1mm 19.0mm 17.0mm 23.9mm 22.4mm
N2502-06-06-B Brass 3/8" 3/8" 33.3mm 15.0mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 25.9mm 22.4mm
N2502-06-08-B Brass 3/8" 1/2" 36.0mm 19.8mm 19.3mm 16.8mm 7.1mm 27.0mm 17.0mm 28.7mm 28.5mm
N2502-08-04-B Brass 1/2" 1/4" 36.0mm 15.0mm 21.8mm 22.9mm 7.1mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-06-B Brass 1/2" 3/8" 36.0mm 15.0mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-08-B Brass 1/2" 1/2" 38.9mm 19.8mm 21.8mm 22.9mm 10.4mm 27.0mm 22.0mm 28.7mm 28.5mm

N2502-02-02-SS Stainless Steel 1/8" 1/8" 24.6mm 10.4mm 15.3mm 12.7mm 2.4mm 14.0mm 11.0mm 18.0mm 19.0mm
N2502-02-04-SS Stainless Steel 1/8" 1/4" 27.4mm 15.0mm 15.3mm 12.7mm 2.4mm 19.0mm 11.0mm 20.8mm 22.4mm
N2502-03-02-SS Stainless Steel - - - - - - - - - - -
N2502-04-02-SS Stainless Steel 1/4" 1/8" 26.9mm 10.4mm 17.8mm 15.3mm 4.8mm 14.0mm 14.0mm 19.6mm 19.0mm
N2502-04-04-SS Stainless Steel 1/4" 1/4" 29.7mm 15.0mm 17.8mm 15.3mm 4.8mm 19.0mm 14.0mm 22.4mm 22.4mm
N2502-04-06-SS Stainless Steel 1/4" 3/8" 31.8mm 15.0mm 17.8mm 15.3mm 4.8mm 22.0mm 14.0mm 24.4mm 22.4mm
N2502-04-08-SS Stainless Steel 1/4" 1/2" 34.6mm 19.8mm 17.8mm 15.3mm 4.8mm 27.0mm 14.0mm 27.2mm 28.5mm
N2502-05-02-SS Stainless Steel 5/16" 1/8" 28.7mm 10.4mm 17.8mm 15.3mm 6.3mm 19.0mm 14.0mm 21.40mm 19.10mm
N2502-05-04-SS Stainless Steel 5/16" 1/4" 30.5mm 15.0mm 18.5mm 16.3mm 6.3mm 22.0mm 16.0mm 23.20mm 22.40mm
N2502-06-02-SS Stainless Steel 3/8" 1/8" 30.5mm 10.4mm 19.3mm 16.8mm 7.1mm 17.0mm 17.0mm 23.2mm 19.1mm
N2502-06-04-SS Stainless Steel 3/8" 1/4" 31.2mm 15.0mm 19.3mm 16.8mm 7.1mm 19.0mm 17.0mm 23.9mm 22.4mm
N2502-06-06-SS Stainless Steel 3/8" 3/8" 33.3mm 15.0mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 25.9mm 22.4mm
N2502-06-08-SS Stainless Steel 3/8" 1/2" 36.0mm 19.8mm 19.3mm 16.8mm 7.1mm 27.0mm 17.0mm 28.7mm 28.5mm
N2502-08-04-SS Stainless Steel 1/2" 1/4" 36.0mm 15.0mm 21.8mm 22.9mm 7.1mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-06-SS Stainless Steel 1/2" 3/8" 36.0mm 15.0mm 21.8mm 22.9mm 10.4mm 22.0mm 22.0mm 25.9mm 22.4mm
N2502-08-08-SS Stainless Steel 1/2" 1/2" 38.9mm 19.8mm 21.8mm 22.9mm 10.4mm 27.0mm 22.0mm 28.7mm 28.5mm
N2501-10-06-SS Stainless Steel 5/8" 3/8" 38.1mm 15.0mm 21.8mm 22.9mm 12.7mm 24.0mm 22.0mm 28.0mm 22.4mm
N2502-10-08-SS Stainless Steel 5/8" 1/2" 39.9mm 19.8mm 21.8mm 24.4mm 12.7mm 27.0mm 25.0mm 29.7mm 28.5mm
N2502-12-08-SS Stainless Steel 3/4" 1/2" 39.9mm 19.8mm 21.8mm 24.4mm 15.8mm 27.0mm 28.5mm 29.7mm 28.5mm
N2502-12-12-SS Stainless Steel 3/4" 3/4" 44.7mm 20.6mm 21.8mm 24.4mm 15.8mm 35.0mm 28.5mm 34.6mm 31.8mm
N2502-14-12-SS Stainless Steel 7/8" 3/4" 44.7mm 20.6mm 21.8mm 25.9mm 18.2mm 35.0mm 32.0mm 34.6mm 31.8mm
N2502-16-12-SS Stainless Steel 1" 3/4" 49.0mm 20.6mm 26.4mm 31.2mm 22.3mm 35.0mm 38.0mm 36.8mm 31.8mm
N2502-16-16-SS Stainless Steel 1" 1" 53.6mm 25.4mm 26.4mm 31.2mm 22.3mm 41.0mm 38.0mm 41.4mm 38.1mm
