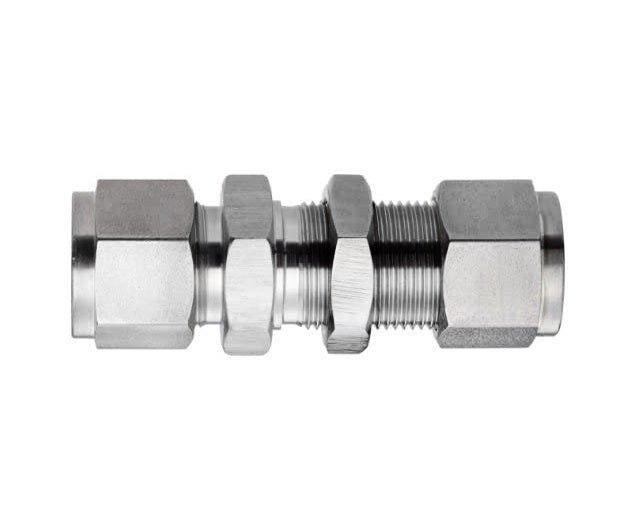

N2700-LN-05-05-SS by Brennan Inc. | -05 Instrumentation Fitting x -05 Instrumentation Fitting Bulkhead Union | Straight | Stainless Steel

N2700-LN-05-05-SS by Brennan Inc. | -05 Instrumentation Fitting x -05 Instrumentation Fitting Bulkhead Union | Straight | Stainless Steel

Save $4.31 Save $4.31
$38.77
$38.77 - $38.77
$38.77
$34.46
$34.46 - $34.46
$34.46

Brennan Inc.
Double Ferrule Tube Fittings: N2700-LN - Instrumentation Fitting x Instrumentation Fitting Bulkhead Union Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2700-LN-05-05-SS Brennan
Shape (Orientation): Straight
Material(s): Stainless Steel
Part Number Material T Tube OD TX Tube OD A AX C CX D DX E Min. F A/F G A/F GX A/F H HX Panel Hole Drill Size Max. Panel Thickness
N2700-LN-02-02-B Brass 1/8" - 51.3mm 31.2mm 15.3mm - 12.7mm - 2.4mm 11.0mm 11.0mm - 38.1mm 24.6mm 8.3mm 12.7mm
N2700-LN-04-04-B Brass 1/4" - 57.6mm 33.6mm 17.8mm - 15.3mm - 4.8mm 16.0mm 14.0mm - 43.0mm 26.2mm 11.5mm 10.1mm
N2700-LN-06-06-B Brass 3/8" - 62.2mm 36.8mm 19.3mm - 7.1mm - 7.1mm 22mm 17mm - 47.5mm 29.5mm 14.6mm 11.1mm
N2700-LN-08-08-B Brass 1/2" - 71.1mm 41.9mm 21.8mm - 22.9mm - 10.4mm 24.0mm 22.0mm - 50.8mm 31.8mm 19.5mm 12.7mm

N2700-LN-01-01-SS Stainless Steel 1/16" - 31.5mm 17.3mm 11.0mm - 8.6mm - 1.3mm 11.0mm 8.0mm - 23.8mm 13.5mm 5.2mm 3.0mm
N2700-LN-02-02-SS Stainless Steel 1/8" - 51.3mm 31.2mm 15.3mm - 12.7mm - 2.4mm 11.0mm 11.0mm - 38.1mm 24.6mm 8.3mm 12.7mm
N2700-LN-04-04-SS Stainless Steel 1/4" - 57.6mm 33.6mm 17.8mm - 15.3mm - 4.8mm 16.0mm 14.0mm - 43.0mm 26.2mm 11.5mm 10.1mm
N2700-LN-05-05-SS Stainless Steel 5/16" - 60.7mm 35.8mm 18.5mm - 16.3mm - 6.3mm 17.0mm 16.0mm - 46.0mm 28.5mm 13.0mm 11.1mm
N2700-LN-06-04-SS Stainless Steel 3/8" 1/4" 60.7mm 36.6mm - 17.8mm 16.8mm 15.3mm 4.8mm 22mm 17mm 14mm 46.0mm 29.5mm 14.6mm 11.2mm
N2700-LN-06-06-SS Stainless Steel 3/8" - 62.2mm 36.8mm 19.3mm - 7.1mm - 7.1mm 22.0mm 17.0mm - 47.5mm 29.5mm 14.6mm 11.1mm
N2700-LN-08-08-SS Stainless Steel 1/2" - 71.1mm 41.9mm 21.8mm - 22.9mm - 10.4mm 24.0mm 22.0mm - 50.8mm 31.8mm 19.5mm 12.7mm
N2700-LN-10-10-SS Stainless Steel 5/8" - 72.6mm 42.7mm 21.8mm - 24.4mm - 12.7mm 27.0mm 25.0mm - 52.3mm 32.5mm 22.6mm 12.7mm
N2700-LN-12-12-SS Stainless Steel 3/4" - 79.0mm 47.5mm 21.8mm - 24.4mm - 16.0mm 30.0mm 28.5mm - 58.6mm 37.4mm 25.8mm 16.8mm
N2700-LN-16-16-SS Stainless Steel 1" - 95.6mm 57.4mm 26.4mm - 31.2mm - 22.3mm 35.0mm 38.0mm - 71.3mm 45.2mm 33.7mm 19.0mm
