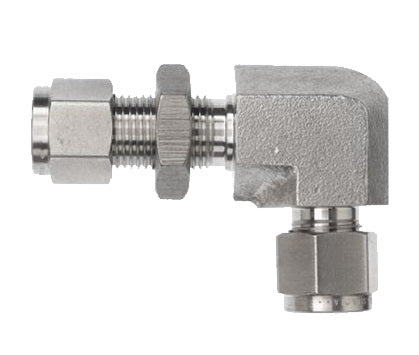

N2701-LN-12-12-SS by Brennan Inc. | -12 Instrumentation Fitting x -12 Instrumentation Fitting Bulkhead Union | 90° Elbow | Stainless Steel

N2701-LN-12-12-SS by Brennan Inc. | -12 Instrumentation Fitting x -12 Instrumentation Fitting Bulkhead Union | 90° Elbow | Stainless Steel

Save $30.71 Save $30.71
$276.35
$276.35 - $276.35
$276.35
$245.64
$245.64 - $245.64
$245.64

Brennan Inc.
Double Ferrule Tube Fittings: N2701-LN - Instrumentation Fitting x Instrumentation Fitting Bulkhead Union 90° Elbow
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N2701-LN-12-12-SS Brennan
Shape (Orientation): 90 Degree
Material(s): Stainless Steel
Part Number Material T Tube OD A AX AY C D E Min. F A/F G A/F H HX HY Panel Hole Drill Size Max. Panel Thickness
N2701-LN-02-02-SS Stainless Steel 1/8" 43.1mm 31.2mm 22.4mm 15.3mm 12.7mm 2.4mm 11.0mm 11.0mm 36.5mm 24.6mm 15.8mm 8.3mm 12.7mm
N2701-LN-04-04-SS Stainless Steel 1/4" 48.9mm 33.6mm 26.9mm 17.8mm 15.3mm 4.8mm 16.0mm 14.0mm 41.5mm 26.2mm 19.6mm 11.5mm 10.1mm
N2701-LN-06-06-SS Stainless Steel 3/8" 54.1mm 36.8mm 30.5mm 19.3mm 16.8mm 7.1mm 22.0mm 17.0mm 46.8mm 29.5mm 23.2mm 14.6mm 11.1mm
N2701-LN-08-08-SS Stainless Steel 1/2" 63.5mm 41.9mm 36.0mm 21.8mm 22.9mm 10.4mm 24.0mm 22.0mm 53.4mm 31.8mm 25.9mm 19.5mm 12.7mm
N2701-LN-12-12-SS Stainless Steel 3/4" 75.3mm 47.5mm 39.9mm 21.8mm 24.4mm 16.0mm 30.0mm 29.0mm 65.2mm 37.4mm 29.7mm 25.8mm 16.8mm
N2701-LN-16-16-SS Stainless Steel 1" 91.8mm 57.4mm 49.0mm 26.4mm 31.2mm 22.3mm 35.0mm 38.0mm 79.6mm 45.2mm 36.8mm 33.7mm 19.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
