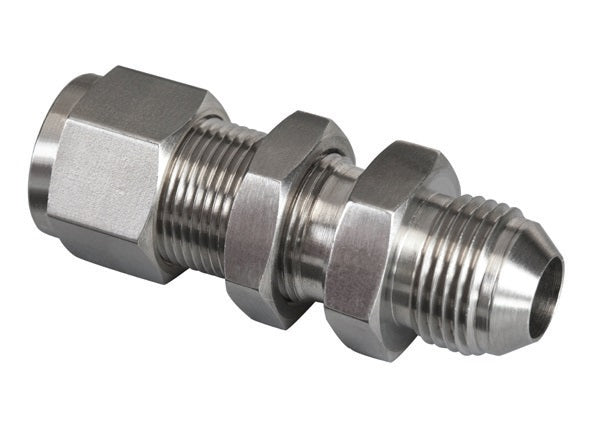

N2707-LN-12-12-SS by Brennan Inc. | -12 Instrumentation Fitting Bulkhead x -12 Male JIC Bulkhead | Straight | Stainless Steel

N2707-LN-12-12-SS by Brennan Inc. | -12 Instrumentation Fitting Bulkhead x -12 Male JIC Bulkhead | Straight | Stainless Steel

$135.78 - $135.78
$135.78
$149.35
$149.35 - $149.35
$149.35

Brennan Inc.
Double Ferrule Tube Fittings: N2707-LN - Instrumentation Fitting Bulkhead x Male JIC Bulkhead Straight
Specifications for Variant SKU: N2707-LN-12-12-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 3/4in Tube Compression , 3/4in Male JIC
Material(s): Stainless Steel
Part Number Material T Tube OD AN Tube Flare A AX D E MIN. F A/F G A/F H HX S Thread Panel Hole Drill Size Max. Panel Thickness
N2707-LN-04-04-SS Stainless Steel 1/4" 1/4" 53.9mm 33.5mm 15.2mm 4.3mm 5/8" 9/16" 46.5mm 26.2mm 7/16-20 11.5mm 10.1mm
N2706-LN-06-06-SS Stainless Steel 3/8" 3/8" 57.2mm 36.8mm 16.8mm 7.1mm 3/4" 11/16" 49.8mm 29.5mm 9/16-18 14.7mm 11.1mm
N2707-LN-08-08-SS Stainless Steel 1/2" 1/2" 65.8mm 41.9mm 22.9mm 9.9mm 15/16" 7/8" 55.6mm 31.8mm 3/4-16 19.5mm 12.7mm
N2707-LN-12-12-SS Stainless Steel 3/4" 3/4" 79.0mm 47.5mm 24.4mm 15.5mm 1-3/16" 1-1/8" 68.8mm 37.3mm 1-1/16-12 25.8mm 16.7mm
N2707-LN-16-16-SS Stainless Steel 1" 1" 92.5mm 57.4mm 31.2mm 21.3mm 1-5/8" 1-1/2" 80.3mm 45.2mm 1-5/16-12 33.7mm 19.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
