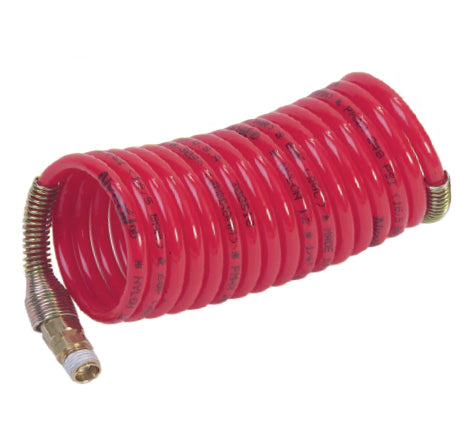

N6BS2-12 by Nycoil | Self-Storing Air Hose Assembly | 3/8" Hose ID | 3/8" MPT Swivel | Red | 225 PSI | Nylon | 12ft

Save $3.75

$37.37

$37.37 - $37.37

$37.37

$33.62

$33.62 - $33.62

$33.62

Nycoil® Nylon Self-Storing Air Hose Assemblies & Bulk Hose - 3/8" Hose ID

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: N6BS2-12 Nycoil
Series:	Nylon Self-Storing Air Hose
Hose Color(s):	Red
Internal Diameter:	0.375in
Tubing Construction:	Nylon
Ends Configuration:	3/8in Male NPT, 3/8in Male NPT, Some Ends Match

Overview:
Nycoil was the inventor of the Nylon Self-Storing Air Hose in 1958. It was developed as a means to transport air from overhead piping to pneumatic tools at assembly stations while keeping the work area neat and safe. Unlike straight hose that lays on the floor or workbench and can easily become tangled, Self-Storing Hose retracts to keep the area clutter free. The user can also be more productive because the hose retracts away from the work area, giving the user more clear space and freedom of movement. Nylon is resistant to a wide variety of chemicals making it a good choice for most industrial environments.
Features:
Extremely light weight - considerably lighter than traditional rubber hoses Economizes on space - retracts to a fraction of its working length Highly flexible - doesn't impede tool maneuverability Brass field attachable fittings - no ferrules or inserts that become deformed and have to be replaced whenever fittings are installed Excellent memory - coils continue to retract after repeated stretching Resistant to many chemicals & petroleum based products - suitable for numerous applications Less than 1% moisture absorption Recommended working length: up to 85% of material length Temperature Range: -40 deg. F to +200 deg. F (-40 deg. C to +93 deg. C)

Part Number	Hose ID	Hose OD	Nom. Coil ID	Nom. Coil OD	Working Pressure		Length	Fittings	Working Length	Nom. Compact Length	Hose Color
	inch	inch	inch	inch	PSI	Bar	feet		feet	inch
N6AS2-12	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	12 ft	1/4" MPT, Swivel	9 ft	5"	Red
N6AS5-12	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	12 ft	1/4" MPT, Swivel	9 ft	5"	Yellow
N6AS3-12	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	12 ft	1/4" MPT, Swivel	9 ft	5"	Blue
N6AS1-12	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	12 ft	1/4" MPT, Swivel	9 ft	5"	Black
N6AS2-25	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	25 ft	1/4" MPT, Swivel	18.75 ft	10"	Red
N6AS5-25	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	25 ft	1/4" MPT, Swivel	18.75 ft	10"	Yellow
N6AS3-25	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	25 ft	1/4" MPT, Swivel	18.75 ft	10"	Blue
N6AS1-25	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	25 ft	1/4" MPT, Swivel	18.75 ft	10"	Black
N6AS2-50	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	50 ft	1/4" MPT, Swivel	37.5 ft	18.75"	Red
N6AS5-50	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	50 ft	1/4" MPT, Swivel	37.5 ft	18.75"	Yellow
N6AS3-50	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	50 ft	1/4" MPT, Swivel	37.5 ft	18.75"	Blue
N6AS1-50	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	50 ft	1/4" MPT, Swivel	37.5 ft	18.75"	Black

N6BS2-12	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	12 ft	3/8" MPT, Swivel	9 ft	5"	Red
N6BS5-12	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	12 ft	3/8" MPT, Swivel	9 ft	5"	Yellow
N6BS3-12	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	12 ft	3/8" MPT, Swivel	9 ft	5"	Blue
N6BS1-12	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	12 ft	3/8" MPT, Swivel	9 ft	5"	Black
N6BS2-25	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	25 ft	3/8" MPT, Swivel	18.75 ft	10"	Red
N6BS5-25	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	25 ft	3/8" MPT, Swivel	18.75 ft	10"	Yellow
N6BS3-25	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	25 ft	3/8" MPT, Swivel	18.75 ft	10"	Blue
N6BS1-25	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	25 ft	3/8" MPT, Swivel	18.75 ft	10"	Black
N6BS2-50	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	50 ft	3/8" MPT, Swivel	37.5 ft	18.75"	Red
N6BS5-50	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	50 ft	3/8" MPT, Swivel	37.5 ft	18.75"	Yellow
N6BS3-50	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	50 ft	3/8" MPT, Swivel	37.5 ft	18.75"	Blue
N6BS1-50	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	50 ft	3/8" MPT, Swivel	37.5 ft	18.75"	Black
N6XX2-100	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	100 ft	None (bulk)	NA	38"	Red
N6XX5-100	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	100 ft	None (bulk)	NA	38"	Yellow
N6XX3-100	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	100 ft	None (bulk)	NA	38"	Blue
N6XX1-100	3/8"	0.463"	4-1/2"	5-1/2"	225 PSI	15.5 Bar	100 ft	None (bulk)	NA	38"	Black

Nycoil

Since its inception in 1958, Nycoil has recognized the importance of Innovation. From the introduction of the original Self-Storing Air Hose over fifty years ago to the more recent development of our state of the art Poly-Matic Push-To-Connect Fittings, Nycoil has established itself as a leader in the Fluid Power and Industrial markets.
