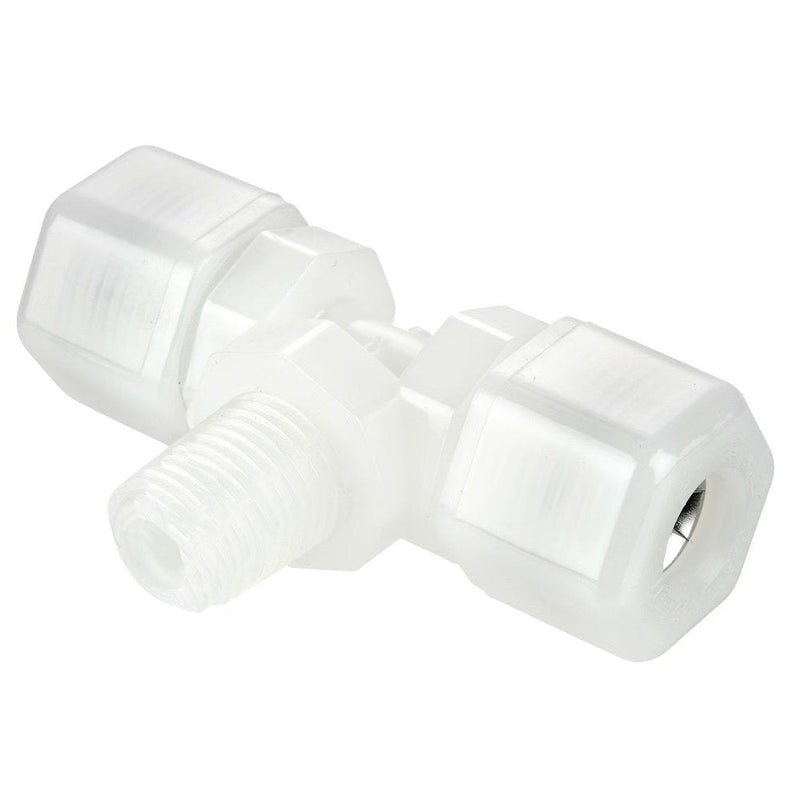

N8MT8 by Parker | Threaded Fitting | 1/2" Tube OD x 1/2" Male NPTF Thread | 1" Hex | 2.92" Length | Tee | Natural | Nylon

N8MT8 by Parker | Threaded Fitting | 1/2" Tube OD x 1/2" Male NPTF Thread | 1" Hex | 2.92" Length | Tee | Natural | Nylon

Save $0.37 Save $0.37
$4.48
$4.48 - $4.48
$4.48
$4.11
$4.11 - $4.11
$4.11

by Parker Hannifin
Fast & Tite® Fittings:MT - Male Branch Tee
Specifications for Variant SKU: N8MT8 Parker
Brand: Fast & Tite®
Series: MT Series
Shape (Orientation): Tee
Material(s): Nylon, 302 Stainless Steel
Special Properties: Food Grade
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. NPTF Thread Size Hex (C) M N Flow Diameter (D)
P4MT2 N4MT2 1/4" 1/8" 11/16" 1.09" .89" .170"
P4MT4 N4MT4 1/4" 1/4" 11/16" 1.09" 1.06" .170"
P5MT2 - 5/16" 1/8" 11/16" 1.09" .89" .170"
P5MT4 - 5/16" 1/4" 11/16" 1.09" 1.06" .187"
P6MT4 N6MT4 3/8" 1/4" 13/16" 1.30" 1.12" .250"
P6MT6 N6MT6 3/8" 3/8" 13/16" 1.30" 1.10" .250"
P8MT6 N8MT6 1/2" 3/8" 1" 1.46" 1.22" .375"
P8MT8 N8MT8 1/2" 1/2" 1" 1.46" 1.43" .375"
P10MT8 - 5/8" 1/2" 1-1/8" 1.68" 1.41" .500"
