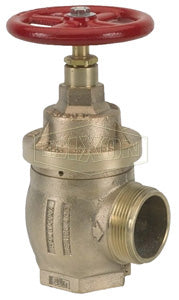

NAPRAV250F-70 Dixon Cast Brass Factory Set Pressure Reducing Valve - 2-1/2" Female NPT Inlet - 2-1/2" Male NST(NH) Outlet - Calculated Setting: 70

NAPRAV250F-70 Dixon Cast Brass Factory Set Pressure Reducing Valve - 2-1/2" Female NPT Inlet - 2-1/2" Male NST(NH) Outlet - Calculated Setting: 70

Save $63.88 Save $63.88
$574.88
$574.88 - $574.88
$574.88
$511.00
$511.00 - $511.00
$511.00

Dixon Fire Fittings
Factory Set Pressure Reducing Brass Angle Valve

A true combination shut-off and pressure reducing valve.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: NAPRAV250F-70 Dixon
Shape (Orientation): 90 Degree
Material(s): Brass
Features:
  • 1-1/2" reduces inlet pressure of 300 PSI (2069 kPa) or less to working pressures of 10 through 175 PSI (69-1207 kPa).
  • 2-1/2" reduces inlet pressures of 400 PSI (2758 kPa) or less to working pressures of 20 through 175 PSI (138-1207 kPa) under discharge or static conditions.
  • Female x Female valves have an open / closed indicator bonnet for confirmation of status.
  • Tamper resistant and automatic.
  • All debris must be flushed from the system prior to being placed into service.
Specifications:
  • UL listed for Automatic Sprinkler Systems as floor or zone control valves.
  • Standpipe Systems, Class I, II and III.
  • Automatic Check Valve for Dual Riser Systems.
  • Approved by New York City Board of Standards and Appeals, approval # MEA 54-07-E
  • Approved by City of Los Angeles and the City of San Francisco (ULC 2-1/2")
Size A B C D E Closed E Open
1-1/2" 2-7/32" 4-5/32" 3-7/8" 3-3/4" 9-25/64" 8-53/64"
2-1/2" 3-7/32" 6-3/32" 5-3/4" 5-3/4" 11-3/8" 10-13/16"
Part Number Inlet Outlet Calculated Setting Weight
(Lbs.)
NAPRAV150F-15 1-1/2" Female NPT 1-1/2" Male NST(NH) 15 7.5200
NAPRAV150F-20 1-1/2" Female NPT 1-1/2" Male NST(NH) 20 7.3300
NAPRAV150F-25 1-1/2" Female NPT 1-1/2" Male NST(NH) 25 7.2200
NAPRAV150F-30 1-1/2" Female NPT 1-1/2" Male NST(NH) 30 7.4400
NAPRAV150F-35 1-1/2" Female NPT 1-1/2" Male NST(NH) 35 -
NAPRAV250F-55 2-1/2" Female NPT 2-1/2" Male NST(NH) 55 18.7750
NAPRAV250F-60 2-1/2" Female NPT 2-1/2" Male NST(NH) 60 18.1000
NAPRAV250F-65 2-1/2" Female NPT 2-1/2" Male NST(NH) 65 36.7000
NAPRAV250F-70 2-1/2" Female NPT 2-1/2" Male NST(NH) 70 19.8900
NAPRAV250F-75 2-1/2" Female NPT 2-1/2" Male NST(NH) 75 18.2000
NAPRAV250F-80 2-1/2" Female NPT 2-1/2" Male NST(NH) 80 12.3800
NAPRAVF150-15 1-1/2" Female NPT 1-1/2" Female NPT 15 7.0000
NAPRAVF150-20 1-1/2" Female NPT 1-1/2" Female NPT 20 7.2000
NAPRAVF150-25 1-1/2" Female NPT 1-1/2" Female NPT 25 7.2200
NAPRAVF150-30 1-1/2" Female NPT 1-1/2" Female NPT 30 7.4400
NAPRAVF150-50 1-1/2" Female NPT 1-1/2" Female NPT 50 -
NAPRAVF250-55 2-1/2" Female NPT 2-1/2" Female NPT 55 18.5000
NAPRAVF250-60 2-1/2" Female NPT 2-1/2" Female NPT 60 18.1000
NAPRAVF250-65 2-1/2" Female NPT 2-1/2" Female NPT 65 18.5000
NAPRAVF250-70 2-1/2" Female NPT 2-1/2" Female NPT 70 19.5200
NAPRAVF250-75 2-1/2" Female NPT 2-1/2" Female NPT 75 21.2200
NAPRAVF250-80 2-1/2" Female NPT 2-1/2" Female NPT 80 22.6700
