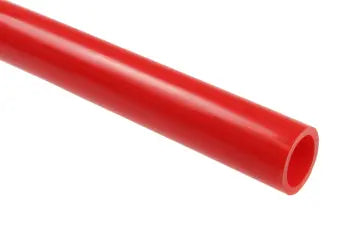

NC0435-100R by Coilhose | Tubing | 1/4" OD x .180" ID | .035" Wall thickness | Red | Nylon | 100ft

NC0435-100R by Coilhose | Tubing | 1/4" OD x .180" ID | .035" Wall thickness | Red | Nylon | 100ft

Save $4.51 Save $4.51
$40.58
$40.58 - $40.58
$40.58
$36.07
$36.07 - $36.07
$36.07
Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 1/4" OD x .180" ID
Specifications for Variant SKU: NC0435-100R Coilhose
Hose Color(s): Red
Material(s): Nylon
Overview:
  • Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:

Temperature Range: -60° F to 200° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: .0.002"; -0.004" All inch sizes
+0.051 mm; -.1 mm All Metric sizes		 Hardness: 78 Rockwell R
Working Pressure: 4 to 1 Safety Factor Compliance: Meets UL94HB
UV Stabilized: Yes

Part Number
100ft Length		 Part Number
500ft Length		 Part Number
1000ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
NC0435-100R NC0435-500R NC0435-1000R Red 1/4" x .180" .035" 290 PSI
NC0435-100N NC0435-500N NC0435-1000N Natural
NC0435-100G NC0435-500G NC0435-1000G Green
NC0435-100B NC0435-500B NC0435-1000B Blue
NC0435-100K NC0435-500K NC0435-1000K Black
NC0435-100Y NC0435-500Y NC0435-1000Y Yellow
