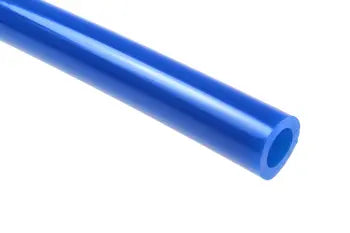

NC0435-500B by Coilhose | Tubing | 1/4" OD x .180" ID | .035" Wall thickness | Blue | Nylon | 500ft

Save $20.58

$185.24

$185.24 - $185.24

$185.24

$164.66

$164.66 - $164.66

$164.66

Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 1/4" OD x .180" ID

Quantity

Specifications for Variant SKU: NC0435-500B Coilhose
Hose Color(s):	Blue
Material(s):	Nylon

Overview:
Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:
Dimensional stability makes it compatible with: Coilock Fittings Poly-Tube Fittings

Temperature Range:	-60° F to 200° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	.0.002"; -0.004" All inch sizes +0.051 mm; -.1 mm All Metric sizes	Hardness:	78 Rockwell R
Working Pressure:	4 to 1 Safety Factor	Compliance:	Meets UL94HB
UV Stabilized:	Yes

Part Number 100ft Length	Part Number 500ft Length	Part Number 1000ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
NC0435-100R	NC0435-500R	NC0435-1000R	Red	1/4" x .180"	.035"	290 PSI
NC0435-100N	NC0435-500N	NC0435-1000N	Natural
NC0435-100G	NC0435-500G	NC0435-1000G	Green
NC0435-100B	NC0435-500B	NC0435-1000B	Blue
NC0435-100K	NC0435-500K	NC0435-1000K	Black
NC0435-100Y	NC0435-500Y	NC0435-1000Y	Yellow
