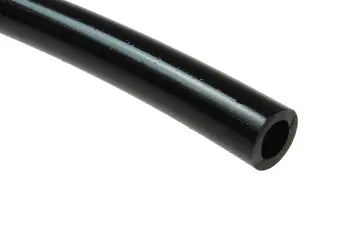

NC0510-100K by Coilhose | Tubing | 5mm OD x 3mm ID | 1.0 mm Wall thickness | Black | Nylon | 100ft

Save $24.65

$61.62

$61.62 - $61.62

$61.62

$36.97

$36.97 - $36.97

$36.97

Coilhose Pneumatics - Plastic Tubing - Metric Nylon Tubing - 5.0mm OD x 3.0mm ID

Specifications for Variant SKU: NC0510-100K Coilhose
Hose Color(s):	Black
Material(s):	Nylon

Overview:
Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:
Dimensional stability makes it compatible with: Coilock Metric Fittings Poly-Tube Fittings

Temperature Range:	-60° F to 200° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	.0.002"; -0.004" All inch sizes +0.051 mm; -.1 mm All Metric sizes	Hardness:	78 Rockwell R
Working Pressure:	4 to 1 Safety Factor	Compliance:	Meets UL94HB
UV Stabilized:	Yes

Part Number 100ft Length	Part Number 1000ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
NC0510-100K	NC0510-1000K	Black	5.0mm x 3.0mm	1.0mm	420 PSI
NC0510-100N	NC0510-1000N	Natural	5.0mm x 3.0mm	1.0mm	420 PSI
