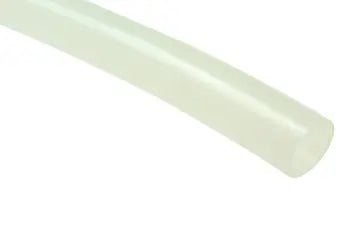

NC1210-500N by Coilhose | Tubing | 12mm OD x 10mm ID | 1.0 mm Wall thickness | Natural | Nylon | 500ft

Save $295.02

$737.55

$737.55 - $737.55

$737.55

$442.53

$442.53 - $442.53

$442.53

Coilhose Pneumatics - Plastic Tubing - Metric Nylon Tubing - 12.0mm OD x 10.0mm ID

Specifications for Variant SKU: NC1210-500N Coilhose
Hose Color(s):	Natural
Material(s):	Nylon

Overview:
Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:
Dimensional stability makes it compatible with: Coilock Metric Fittings Poly-Tube Fittings

Temperature Range:	-60° F to 200° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	.0.002"; -0.004" All inch sizes +0.051 mm; -.1 mm All Metric sizes	Hardness:	78 Rockwell R
Working Pressure:	4 to 1 Safety Factor	Compliance:	Meets UL94HB
UV Stabilized:	Yes

Part Number 100ft Length	Part Number 250ft Length	Part Number 500ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
NC1210-100K	NC1210-250K	NC1210-500K	Black	12.0mm x 10.0mm	1.0mm	150 PSI
NC1210-100N	NC1210-250N	NC1210-500N	Natural	12.0mm x 10.0mm	1.0mm	150 PSI

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
