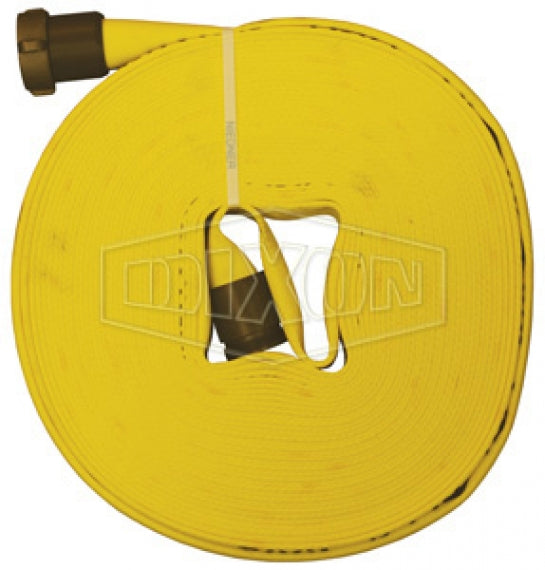

NF610Y50RAS Dixon Forestry Non Weeping Fire Hose - Coupled - 1" Male x Female NPSH - Aluminum - 50ft Length

NF610Y50RAS Dixon Forestry Non Weeping Fire Hose - Coupled - 1" Male x Female NPSH - Aluminum - 50ft Length

Save $26.90 Save $26.90
$242.10
$242.10 - $242.10
$242.10
$215.20
$215.20 - $215.20
$215.20

Dixon Fire Fittings
Forestry Non Weeping Fire Hose - Coupled - Female x Male Expansion Ring Couplings, Rocker Lugs
Specifications for Variant SKU: NF610Y50RAS Dixon
Series: Fire Hose
Hose Color(s): Yellow
Internal Diameter: 1in
Tubing Construction: Thermoplastic Elastomer
Cover Construction: Polyester Textile Braid
Ends Configuration: 1in Male NPSH, 1in Female NPSH
Features:
  • Outer construction: single jacket, all polyester
  • Tube construction: thermoplastic
  • Impregnation: yellow
  • Couplings: aluminum, rocker lug
  • Proof pressure: 600 PSI at ambient temperature 70°F (21°C)
  • Service test pressure: 300 PSI at ambient temperature 70°F (21°C)
  • Working pressure: 270 PSI at ambient temperature 70°F (21°C)
Male x Female NST(NH)
Part Number		 Male x Female NPSH
Part Number		 Size Length
NF610Y50RAF NF610Y50RAS 1" 50ft
NF610Y100RAF NF610Y100RAS 1" 100ft
NF615Y50RAF NF615Y50RAS 1-1/2" 50ft
NF615Y100RAF NF615Y100RAS 1-1/2" 100ft
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
