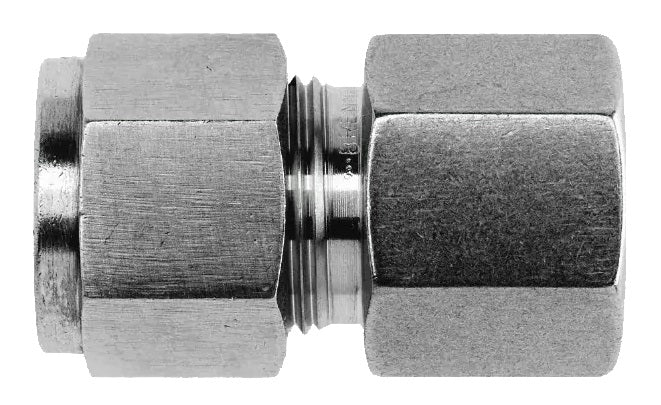

NS2405-08-06-SS by Brennan Inc. | -08 Instrumentation Fitting Single Ferrule x -06 Female NPT | Straight | Stainless Steel

NS2405-08-06-SS by Brennan Inc. | -08 Instrumentation Fitting Single Ferrule x -06 Female NPT | Straight | Stainless Steel

Save $5.54 Save $5.54
$49.83
$49.83 - $49.83
$49.83
$44.29
$44.29 - $44.29
$44.29

Brennan Inc.
Single Ferrule Tube Fittings: NS2405 - Instrumentation Fitting (Single Ferrule) x Female NPT Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: NS2405-08-06-SS Brennan
Shape (Orientation): Straight
Material(s): Stainless Steel
Part Number Material T Tube OD P NPT Male A
mm		 B
mm		 C
mm		 D
mm		 E Min.
mm		 F A/F
mm		 G A/F
mm		 H
mm
NS2405-02-02-B Brass 1/8" 1/8" 28.70mm 10.40mm 15.30mm 12.70mm 2.40mm 14mm 11mm 22.10mm
NS2405-08-08-B Brass 1/2" 1/2" 46.7mm 19.80mm 21.80mm 22.90mm 10.40mm 27mm 22mm 36.60mm

NS2405-02-04-SS Stainless Steel 1/8" 1/4" 33.60mm 15.00mm 15.30mm 12.70mm 2.40mm 19mm 11mm 26.90mm
NS2405-04-02-SS Stainless Steel 1/4" 1/8" 31.20mm 9.90mm 17.80mm 15.30mm 4.80mm 14mm 14mm 23.90mm
NS2405-04-04-SS Stainless Steel 1/4" 1/4" 35.80mm 15.00mm 17.80mm 15.30mm 4.80mm 19mm 14mm 28.50mm
NS2405-04-08-SS Stainless Steel 1/4" 1/2" 42.40mm 19.80mm 17.80mm 15.30mm 4.80mm 27mm 14mm 35.00mm
NS2405-06-04-SS Stainless Steel 3/8" 1/4" 37.60mm 15.00mm 19.30mm 16.80mm 7.10mm 19mm 17mm 30.20mm
NS2405-06-06-SS Stainless Steel 3/8" 3/8" 39.10mm 15.00mm 19.30mm 16.80mm 7.10mm 22mm 17mm 31.80mm
NS2405-06-08-SS Stainless Steel 3/8" 1/2" 43.90mm 19.80mm 19.30mm 16.80mm 7.10mm 27mm 17mm 36.60mm
NS2405-06-12-SS Stainless Steel - - - - - - - - - -
NS2405-08-04-SS Stainless Steel 1/2" 1/4" 40.40mm 15.00mm 21.80mm 22.90mm 10.40mm 22mm 22mm 30.20mm
NS2405-08-06-SS Stainless Steel 1/2" 3/8" 41.90mm 15.00mm 21.80mm 22.90mm 10.40mm 22mm 22mm 30.20mm
NS2405-08-08-SS Stainless Steel 1/2" 1/2" 46.70mm 19.80mm 21.80mm 22.90mm 10.40mm 27mm 22mm 36.60mm
NS2405-08-12-SS Stainless Steel 1/2" 3/4" 48.30mm 20.60mm 21.80mm 22.90mm 10.40mm 32mm 22mm 38.10mm
NS2405-16-16-SS Stainless Steel 1" 1" 62.30mm 25.40mm 26.40mm 31.20mm 22.30mm 41mm 38mm 50.00mm
