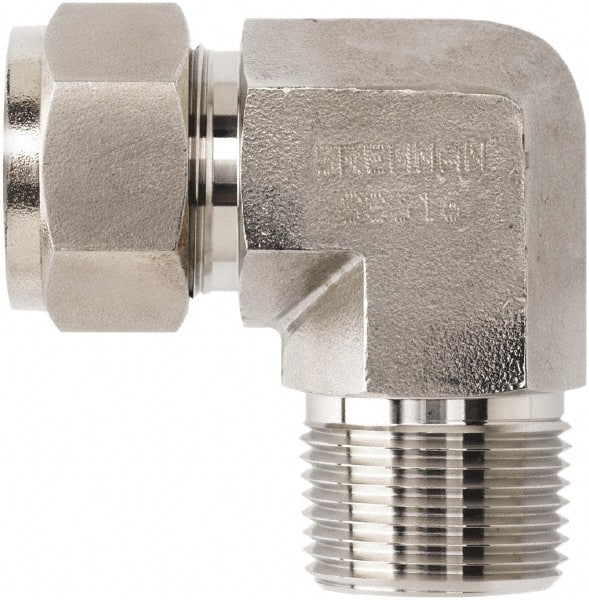

NS2501-08-04-SS by Brennan Inc. | -08 Single Ferrule Instrumentation Fitting x -04 Instrumentation Fitting | 90° Elbow | Stainless Steel

NS2501-08-04-SS by Brennan Inc. | -08 Single Ferrule Instrumentation Fitting x -04 Instrumentation Fitting | 90° Elbow | Stainless Steel

Save $6.85 Save $6.85
$61.64
$61.64 - $61.64
$61.64
$54.79
$54.79 - $54.79
$54.79

Brennan Inc.
Single Ferrule Tube Fittings: NS2501 - Single Ferrule Instrumentation Fitting x Instrumentation Fitting 90° Elbow
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: NS2501-08-04-SS Brennan
Shape (Orientation): 90 Degree
Material(s): Stainless Steel
Part Number Material T Tube OD P NPT Male A
mm		 B
mm		 C
mm		 D
mm		 E Min.
mm		 F A/F
mm		 G A/F
mm		 HX
mm		 HY
mm
NS2501-04-02-B Brass 1/4" 1/8" 26.9mm 9.6mm 17.8mm 5.3mm 4.8mm 14mm 14mm 19.6mm 18.8mm
NS2501-04-04-B Brass 1/4" 1/4" 26.9mm 14.3mm 17.8mm 15.3mm 4.8mm 14mm 14mm 19.6mm 23.4mm
NS2501-06-04-B Brass 3/8" 1/4" 30.5mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 23.1mm 25.4mm
NS2501-06-06-B Brass 3/8" 3/8" 31.2mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 23.9mm 26.2mm
NS2501-08-08-B Brass 1/2" 1/2" 36.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22mm 22mm 25.9mm 33.0mm

NS2501-04-02-SS Stainless Steel 1/4" 1/8" 26.9mm 9.6mm 17.8mm 5.3mm 4.8mm 14mm 14mm 19.6mm 18.8mm
NS2501-04-04-SS Stainless Steel 1/4" 1/4" 26.9mm 14.3mm 17.8mm 15.3mm 4.8mm 14mm 14mm 19.6mm 23.4mm
NS2501-04-06-SS Stainless Steel 1/4" 3/8" 29.7mm 14.3mm 17.8mm 15.3mm 4.8mm 17mm 14mm 22.4mm 26.2mm
NS2501-04-08-SS Stainless Steel 1/4" 1/2" 31.8mm 19.1mm 17.8mm 15.3mm 4.8mm 22mm 14mm 24.4mm 33.0mm
NS2501-05-04-SS Stainless Steel 5/16" 1/4" 28.7mm 9.6mm 18.5mm 16.3mm 6.3mm 14mm 16mm 21.3mm 24.4mm
NS2501-06-02-SS Stainless Steel 3/8" 1/8" 30.5mm 9.6mm 19.3mm 16.8mm 4.8mm 14mm 17mm 23.1mm 20.9mm
NS2501-06-04-SS Stainless Steel 3/8" 1/4" 30.5mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 23.1mm 25.4mm
NS2501-06-06-SS Stainless Steel 3/8" 3/8" 31.2mm 14.3mm 19.3mm 16.8mm 7.1mm 17mm 17mm 23.9mm 26.2mm
NS2501-06-08-SS Stainless Steel 3/8" 1/2" 33.3mm 19.1mm 19.3mm 16.8mm 7.1mm 22mm 17mm 25.9mm 33.0mm
NS2501-08-04-SS Stainless Steel 1/2" 1/4" 36.0mm 14.3mm 21.8mm 22.9mm 4.8mm 22mm 22mm 25.9mm 28.2mm
NS2501-08-06-SS Stainless Steel 1/2" 3/8" 36.0mm 14.3mm 21.8mm 22.9mm 9.6mm 22mm 22mm 25.9mm 28.2mm
NS2501-08-08-SS Stainless Steel 1/2" 1/2" 36.0mm 19.1mm 21.8mm 22.9mm 10.4mm 22mm 22mm 25.9mm 33.0mm
NS2501-10-08-SS Stainless Steel 5/8" 1/2" 38.1mm 19.1mm 21.8mm 24.4mm 11.9mm 24mm 25mm 27.9mm 35.0mm
NS2501-12-08-SS Stainless Steel 3/4" 1/2" 39.9mm 19.1mm 21.8mm 24.4mm 11.9mm 27mm 28.5mm 29.7mm 36.8mm
NS2501-12-12-SS Stainless Steel 3/4" 3/4" 39.9mm 19.1mm 21.8mm 24.4mm 15.8mm 27mm 28.5mm 29.7mm 36.8mm
NS2501-16-16-SS Stainless Steel 1" 1" 49.9mm 23.8mm 26.4mm 31.2mm 22.3mm 35mm 38mm 36.8mm 46.5mm
NS2501-24-24-SS Stainless Steel 1-1/2" 1-1/2" 78.0mm 26.2mm 45.2mm 50.0mm 34.0mm 55mm 57mm 50.8mm 60.4mm
