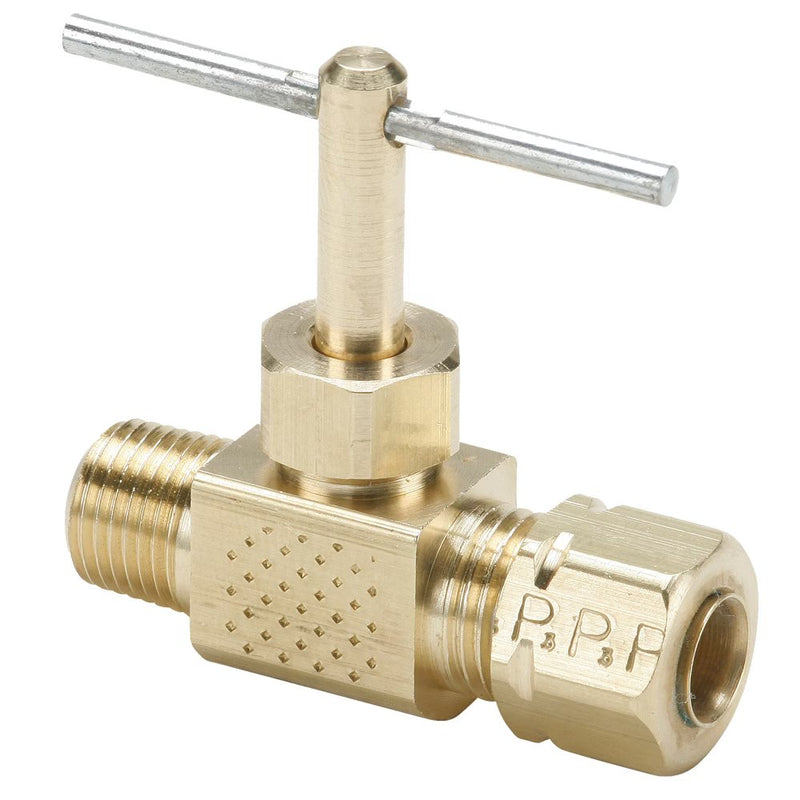

NV106CA-4-4 by Parker | Needle Valve | 1/4" Tube Size Compression x 1/4" Male Pipe Thread | 1.52" Length | Straight | Brass

NV106CA-4-4 by Parker | Needle Valve | 1/4" Tube Size Compression x 1/4" Male Pipe Thread | 1.52" Length | Straight | Brass

Save $2.39 Save $2.39
$29.38
$29.38 - $29.38
$29.38
$26.99
$26.99 - $26.99
$26.99

by Parker Hannifin
Needle Valves:Needle Valve NV106C-NV106CA Compression to Male Pipe

Specifications for Variant SKU: NV106CA-4-4 Parker
Series: NV106CA Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Valved
Parker’s all brass needle valves have metal-to-metal seats with fine thread screwdown. The specially formulated low temperature seal remains elastic to temperatures as low as -40°F (-40° C).
Product Features:
  • Extruded Brass Body & Stem
  • Low Temperature Seal
  • Metal-to-Metal Seal
  • Pin Handle
  • Pre-applied Vibra-Seal thread sealant available
Compatible Fluids:
  • Compressed air, water, industrial fluids
  • Other fluids: please contact division.
Specification:
Temperature Range:
  • -40° to +175° F (-40° to +79.4° C)
  • Humidifier Valve Kit & Self Piercing Humidifier Kit: -30° to +250° F (-34.4° to +121.1° C)
  • NV311P/NV312P: 0° to +150° F (-17.7° to +65.5° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Tube Size Pipe Thread H L M
NV106C-4-2* 1/4" 1/8" 1.50" 1.41" 1.53"
NV106C-4-4* 1/4" 1/4" 1.50" 1.40" 1.55"
NV106C-5-2* 5/16" 1/8" 1.50" 1.35" 1.50"
NV106C-6-4 3/8" 1/4" 1.38" 1.56" 1.75"
NV106CA-4-2 1/4" 1/8" 1.50" 1.41" 1.47"
NV106CA-4-4* 1/4" 1/4" 1.50" 1.33" 1.52"
NV106CA-6-4 3/8" 1/4" 1.38" 1.53" 1.78"

*Provided with Pin Handle
