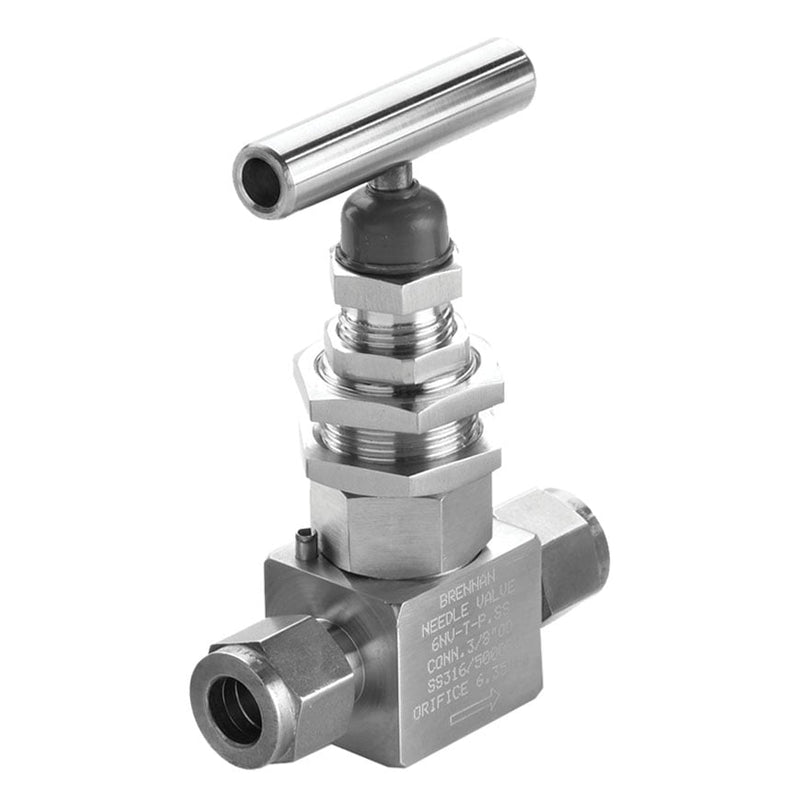

NVN-2038-SS by Brennan Inc. | Needle Valve | -08 Instrumentation Fitting x -08 Instrumentation Fitting | Integral Bonnet | Vee Stem | Stainless Steel

Save $21.58 Save $21.58
Original price $194.24
Original price $194.24 - Original price $194.24
Original price $194.24
Current price $172.66
$172.66 - $172.66
Current price $172.66

Brennan Inc.
Instrumentation Fittings: NVN - Needle Valve

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: NVN-2038-SS Brennan
Material(s): Stainless Steel
Part Number Material Type O.A.L.
(A)
Width
(B)
Panel
Thickness
(C)
Panel
Hole Diameter
Open
Height C.L
Replaces
Swagelok
Pt #
Replaces
Parker
Pt #
Integral Bonnet Style
NVN-2001-B Brass Integral Bonnet Regular Stem 2.08" 0.78" 0.19" 0.649" 2.55" B-ORS2 2A-V4LR-B
NVN-2003-B Brass Integral Bonnet Vee Stem 1.77" 0.78" 0.19" 0.649" 2.91" B-1RF2 2F-V4LR-B
NVN-2004-B Brass Integral Bonnet Vee Stem - - - - - B-ORM2 2M-V2LR-B
NVN-2007-B Brass Integral Bonnet Regular Stem 2.28" 0.78" 0.19" 0.649" 2.55" B-1RS4 4A-V4LR-B
NVN-2008-B Brass Integral Bonnet Vee Stem 1.77" 0.78" 0.19" 0.649" 3.30" B-1RF4 4F-V6LR-B
NVN-2009-B Brass Integral Bonnet Vee Stem 1.96" 0.78" 0.19" 0.649" 2.55" B-1RM4 4M-V4LR-B
NVN-2010-B Brass Integral Bonnet Vee Stem 2.12" 0.78" 0.19" 0.649" 2.55" B-1RM4-S4 4M4A-V4LR-B
NVN-2013-B Brass Integral Bonnet Regular Stem 3.07" 1.22" 0.19" 0.767" 3.34" B-1RS6 6A-V6LR-B
NVN-2018-B Brass Integral Bonnet Regular Stem 3.46" 1.22" 0.19" 0.767" 3.34" B-1RS8 8A-V6LR-B
NVN-2031-B Brass Integral Bonnet Vee Stem 1.96" 0.78" 0.19" 0.649" 2.55" B-IVM4 4M-V4LN-B
NVN-2032-B Brass Integral Bonnet Regular Stem 2.28" 0.78" 0.19" 0.649" 2.55" B-IVS4 4A-V4LN-B
NVN-2033-B Brass Integral Bonnet Vee Stem 1.77" 0.78" 0.19" 0.649" 3.30" B-1VF4 4F-V6LN-SS
NVN-2035-B Brass Integral Bonnet Regular Stem 3.07" 1.22" 0.19" 0.767" 3.34" B-IVS6 6A-V4LN-SS
NVN-2037-B Brass Integral Bonnet Vee Stem 2.12" 1.22" 0.19" 0.767" 3.34" B-1VM6 8A-V6LN-B
NVN-2038-B Brass Integral Bonnet Regular Stem 3.46" 1.22" 0.19" 0.767" 3.34" B-1VS8 8A-V6LR-B
NVN-2039-B Brass Integral Bonnet Regular Stem 3.14" 1.41" 0.19" 0.885" 3.3" B-18VS8 8A-V8LN-B
NVN-2040-B Brass Integral Bonnet Vee Stem 2.51" 1.41" 0.19" 0.885" 3.3" B-18VF8 8F-V8LN-B
NVN-2204-B Brass Screwed Bonnet Needle Valve 2.66" 0.98" 0.19" 0.885" 3.34" B-4JB 4A-NP6LR-B

NVN-2001-SS Stainless Steel Integral Bonnet Regular Stem 2.08" 0.78" 0.19" 0.649" 2.55" SS-ORS2 2A-V4LR-SS
NVN-2002-SS Stainless Steel Integral Bonnet Vee Stem 1.77" 0.78" 0.19" 0.649" 2.91" SS-ORF2 2F-V2LR-SS
NVN-2003-SS Stainless Steel Integral Bonnet Vee Stem 1.77" 0.78" 0.19" 0.649" 2.91" SS-1RF2 2F-V4LR-SS
NVN-2007-SS Stainless Steel Integral Bonnet Regular Stem 2.28" 0.78" 0.19" 0.649" 2.55" SS-1RS4 4A-V4LR-SS
NVN-2008-SS Stainless Steel Integral Bonnet Vee Stem 1.77" 0.78" 0.19" 0.649" 3.30" SS-1RF4 4F-V6LR-SS
NVN-2009-SS Stainless Steel Integral Bonnet Vee Stem 1.96" 0.78" 0.19" 0.649" 2.55" SS-1RM4 4M-V4LR-SS
NVN-2010-SS Stainless Steel Integral Bonnet Vee Stem 2.12" 0.78" 0.19" 0.649" 2.55" SS-1RM4-S4 4M-4A-V4LR-SS
NVN-2013-SS Stainless Steel Integral Bonnet Regular Stem 3.07" 1.22" 0.19" 0.767" 3.34" SS-1RS6 6A-V4LR-SS
NVN-2018-SS Stainless Steel Integral Bonnet Regular Stem 3.46" 1.22" 0.19" 0.767" 3.34" SS-1RS8 8A-V6LR-SS
NVN-2031-SS Stainless Steel Integral Bonnet Vee Stem 1.96" 0.78" 0.19" 0.649" 2.55" SS-1VM4 4M-V4LN-SS
NVN-2032-SS Stainless Steel Integral Bonnet Vee Stem 2.28" 0.78" 0.19" 0.649" 2.55" SS-1VS4 4F-V6LN-B
NVN-2032-SF-SS
(Single Ferrule)
Stainless Steel Integral Bonnet Vee Stem - - - - - - -
NVN-2033-SS Stainless Steel Integral Bonnet Vee Stem 1.77" 0.78" 0.19" 0.649" 3.30" SS-1VF4 6A-V4LN-B
NVN-2035-SS Stainless Steel Integral Bonnet Regular Stem 3.07" 1.22" 0.19" 0.767" 3.34" SS-1VS6 6M-V6LN-SS
NVN-2035-SF-SS
(Single Ferrule)
Stainless Steel Integral Bonnet Vee Stem - - - - - - -
NVN-2037-SS Stainless Steel Integral Bonnet Vee Stem 2.12" 1.22" 0.19" 0.767" 3.34" SS-1VM6 8A-V6LN-SS
NVN-2038-SS Stainless Steel Integral Bonnet Regular Stem 3.46" 1.22" 0.19" 0.767" 3.34" SS-1VS8 8A-V6LR-SS
NVN-2039-SS Stainless Steel Integral Bonnet Regular Stem 3.14" 1.41" 0.19" 0.885" 3.3" SS-18VS8 8A-V8LN-SS
NVN-2040-SS Stainless Steel Integral Bonnet Vee Stem 2.51" 1.41" 0.19" 0.885" 3.3" SS-18VF8 8F-V8LN-SS
Screwed Bonnet Style
NVN-2204-SS Stainless Steel Screwed Bonnet Style 2.66" 0.98" 0.19" 0.885" 3.34" SS-4JB 4A-NP6LR-SS
NVN-2207-B Brass Screwed Bonnet Style 2.57" 0.98" 0.19" 0.885" 3.34" B-6JB 6A-NP6LR-B
NVN-2207-SS Stainless Steel Screwed Bonnet Style 2.57" 0.98" 0.19" 0.885" 3.34" SS-6JB 6A-NP6LR-SS
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
