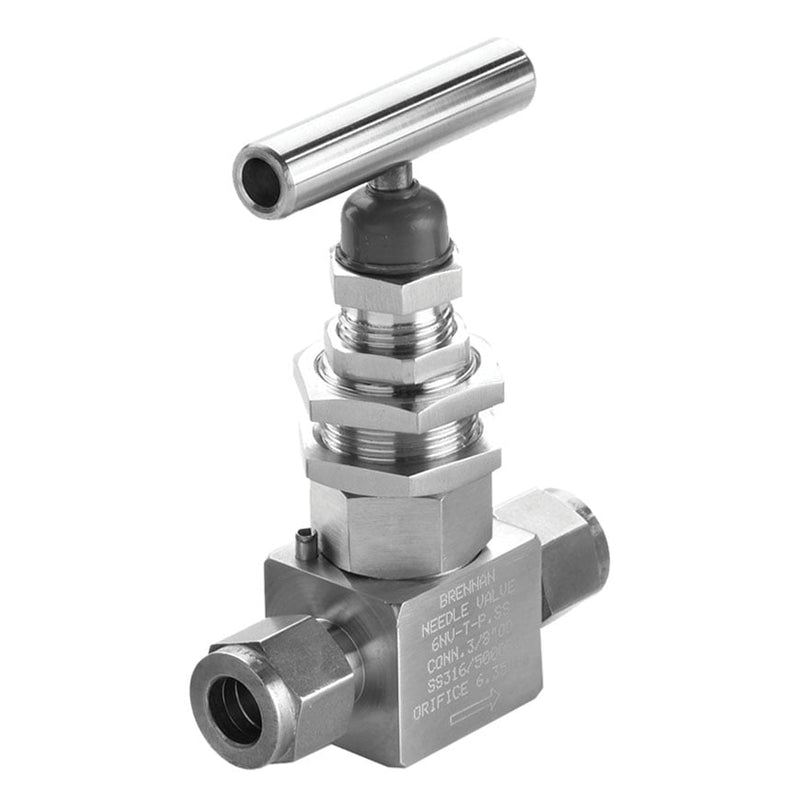

NVN-2039-SS by Brennan Inc. | Needle Valve | -08 Instrumentation Fitting x -08 Instrumentation Fitting | Integral Bonnet | Vee Stem | Stainless Steel

Save $26.98

$242.78

$242.78 - $242.78

$242.78

$215.80

$215.80 - $215.80

$215.80

Brennan Inc.
Instrumentation Fittings: NVN - Needle Valve

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: NVN-2039-SS Brennan
Material(s):	Stainless Steel

Part Number	Material	Type	O.A.L. (A)	Width (B)	Panel Thickness (C)	Panel Hole Diameter	Open Height C.L	Replaces Swagelok Pt #	Replaces Parker Pt #
Integral Bonnet Style
NVN-2001-B	Brass	Integral Bonnet Regular Stem	2.08"	0.78"	0.19"	0.649"	2.55"	B-ORS2	2A-V4LR-B
NVN-2003-B	Brass	Integral Bonnet Vee Stem	1.77"	0.78"	0.19"	0.649"	2.91"	B-1RF2	2F-V4LR-B
NVN-2004-B	Brass	Integral Bonnet Vee Stem	-	-	-	-	-	B-ORM2	2M-V2LR-B
NVN-2007-B	Brass	Integral Bonnet Regular Stem	2.28"	0.78"	0.19"	0.649"	2.55"	B-1RS4	4A-V4LR-B
NVN-2008-B	Brass	Integral Bonnet Vee Stem	1.77"	0.78"	0.19"	0.649"	3.30"	B-1RF4	4F-V6LR-B
NVN-2009-B	Brass	Integral Bonnet Vee Stem	1.96"	0.78"	0.19"	0.649"	2.55"	B-1RM4	4M-V4LR-B
NVN-2010-B	Brass	Integral Bonnet Vee Stem	2.12"	0.78"	0.19"	0.649"	2.55"	B-1RM4-S4	4M4A-V4LR-B
NVN-2013-B	Brass	Integral Bonnet Regular Stem	3.07"	1.22"	0.19"	0.767"	3.34"	B-1RS6	6A-V6LR-B
NVN-2018-B	Brass	Integral Bonnet Regular Stem	3.46"	1.22"	0.19"	0.767"	3.34"	B-1RS8	8A-V6LR-B
NVN-2031-B	Brass	Integral Bonnet Vee Stem	1.96"	0.78"	0.19"	0.649"	2.55"	B-IVM4	4M-V4LN-B
NVN-2032-B	Brass	Integral Bonnet Regular Stem	2.28"	0.78"	0.19"	0.649"	2.55"	B-IVS4	4A-V4LN-B
NVN-2033-B	Brass	Integral Bonnet Vee Stem	1.77"	0.78"	0.19"	0.649"	3.30"	B-1VF4	4F-V6LN-SS
NVN-2035-B	Brass	Integral Bonnet Regular Stem	3.07"	1.22"	0.19"	0.767"	3.34"	B-IVS6	6A-V4LN-SS
NVN-2037-B	Brass	Integral Bonnet Vee Stem	2.12"	1.22"	0.19"	0.767"	3.34"	B-1VM6	8A-V6LN-B
NVN-2038-B	Brass	Integral Bonnet Regular Stem	3.46"	1.22"	0.19"	0.767"	3.34"	B-1VS8	8A-V6LR-B
NVN-2039-B	Brass	Integral Bonnet Regular Stem	3.14"	1.41"	0.19"	0.885"	3.3"	B-18VS8	8A-V8LN-B
NVN-2040-B	Brass	Integral Bonnet Vee Stem	2.51"	1.41"	0.19"	0.885"	3.3"	B-18VF8	8F-V8LN-B
NVN-2204-B	Brass	Screwed Bonnet Needle Valve	2.66"	0.98"	0.19"	0.885"	3.34"	B-4JB	4A-NP6LR-B

NVN-2001-SS	Stainless Steel	Integral Bonnet Regular Stem	2.08"	0.78"	0.19"	0.649"	2.55"	SS-ORS2	2A-V4LR-SS
NVN-2002-SS	Stainless Steel	Integral Bonnet Vee Stem	1.77"	0.78"	0.19"	0.649"	2.91"	SS-ORF2	2F-V2LR-SS
NVN-2003-SS	Stainless Steel	Integral Bonnet Vee Stem	1.77"	0.78"	0.19"	0.649"	2.91"	SS-1RF2	2F-V4LR-SS
NVN-2007-SS	Stainless Steel	Integral Bonnet Regular Stem	2.28"	0.78"	0.19"	0.649"	2.55"	SS-1RS4	4A-V4LR-SS
NVN-2008-SS	Stainless Steel	Integral Bonnet Vee Stem	1.77"	0.78"	0.19"	0.649"	3.30"	SS-1RF4	4F-V6LR-SS
NVN-2009-SS	Stainless Steel	Integral Bonnet Vee Stem	1.96"	0.78"	0.19"	0.649"	2.55"	SS-1RM4	4M-V4LR-SS
NVN-2010-SS	Stainless Steel	Integral Bonnet Vee Stem	2.12"	0.78"	0.19"	0.649"	2.55"	SS-1RM4-S4	4M-4A-V4LR-SS
NVN-2013-SS	Stainless Steel	Integral Bonnet Regular Stem	3.07"	1.22"	0.19"	0.767"	3.34"	SS-1RS6	6A-V4LR-SS
NVN-2018-SS	Stainless Steel	Integral Bonnet Regular Stem	3.46"	1.22"	0.19"	0.767"	3.34"	SS-1RS8	8A-V6LR-SS
NVN-2031-SS	Stainless Steel	Integral Bonnet Vee Stem	1.96"	0.78"	0.19"	0.649"	2.55"	SS-1VM4	4M-V4LN-SS
NVN-2032-SS	Stainless Steel	Integral Bonnet Vee Stem	2.28"	0.78"	0.19"	0.649"	2.55"	SS-1VS4	4F-V6LN-B
NVN-2032-SF-SS (Single Ferrule)	Stainless Steel	Integral Bonnet Vee Stem	-	-	-	-	-	-	-
NVN-2033-SS	Stainless Steel	Integral Bonnet Vee Stem	1.77"	0.78"	0.19"	0.649"	3.30"	SS-1VF4	6A-V4LN-B
NVN-2035-SS	Stainless Steel	Integral Bonnet Regular Stem	3.07"	1.22"	0.19"	0.767"	3.34"	SS-1VS6	6M-V6LN-SS
NVN-2035-SF-SS (Single Ferrule)	Stainless Steel	Integral Bonnet Vee Stem	-	-	-	-	-	-	-
NVN-2037-SS	Stainless Steel	Integral Bonnet Vee Stem	2.12"	1.22"	0.19"	0.767"	3.34"	SS-1VM6	8A-V6LN-SS
NVN-2038-SS	Stainless Steel	Integral Bonnet Regular Stem	3.46"	1.22"	0.19"	0.767"	3.34"	SS-1VS8	8A-V6LR-SS
NVN-2039-SS	Stainless Steel	Integral Bonnet Regular Stem	3.14"	1.41"	0.19"	0.885"	3.3"	SS-18VS8	8A-V8LN-SS
NVN-2040-SS	Stainless Steel	Integral Bonnet Vee Stem	2.51"	1.41"	0.19"	0.885"	3.3"	SS-18VF8	8F-V8LN-SS
Screwed Bonnet Style
NVN-2204-SS	Stainless Steel	Screwed Bonnet Style	2.66"	0.98"	0.19"	0.885"	3.34"	SS-4JB	4A-NP6LR-SS
NVN-2207-B	Brass	Screwed Bonnet Style	2.57"	0.98"	0.19"	0.885"	3.34"	B-6JB	6A-NP6LR-B
NVN-2207-SS	Stainless Steel	Screwed Bonnet Style	2.57"	0.98"	0.19"	0.885"	3.34"	SS-6JB	6A-NP6LR-SS
